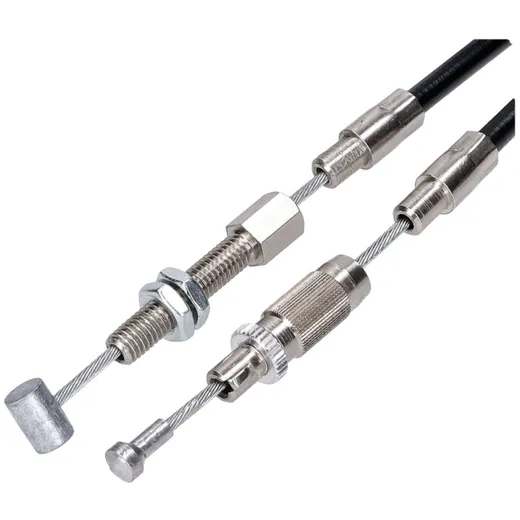

rear brake cable Schmitt Premium for Puch Maxi L, L2, S, S2, SE, X30M, Super Maxi STT44078

Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.

The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as cables from mass production.

Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

Fits Puch Maxi L, L2, S, S2, SE, X30M, Supermaxi. OEM number for comparison purposes only: 910.8.18.004.2

Dimensions:

Overall length: 166.3mm

Stranded wire diameter: 2mm

Sheath length (incl. caps): 152mm

Sheath diameter: 5mm

Nut: M6

Thread length: 29mm

Threaded bolt length (incl. hexagonal adjusting screw): 40mm

Adjusting wheel diameter: 10mm

Adjustment sleeve length: 20mm

Adjustment sleeve width: 9mm

Thread length: 14mm

Threaded bolt overall length: 22mm

Width incl. lock: 7mm

End cap length: 21mm

End cap diameter:6-8mm

Nipple diameter, cylindrical: 7mm

Nipple length, cylindrical: 10mm

Nipple diameter, ball: 6mm head, 3.5mm stem
