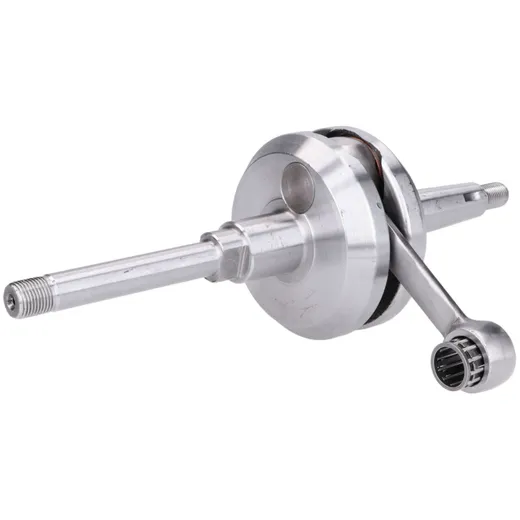

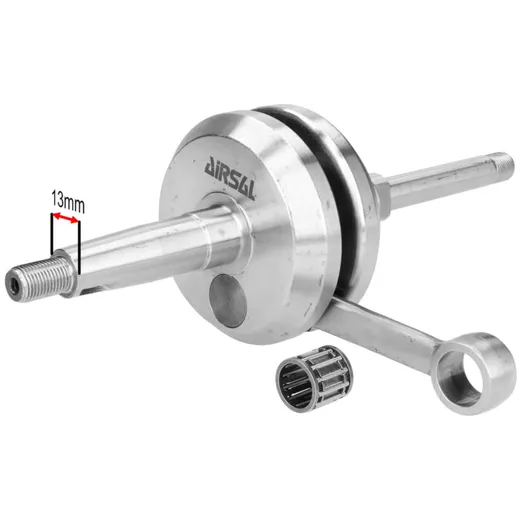

High quality crankshaft from Airsal as original replica in top quality suitable for Peugeot 103 moped with large cone for electronic ignition.
Technical data:
Stroke: 39.1mm
Total length ignition side cheek pin: 70mm .
Total length clutch side cheek pin: 97.8mm .
Diameter 1st shoulder (coupling side cheek pin): 22mm
Diameter 2nd shoulder (coupling side cheek pin): 10mm
Thread on ignition side: M10x1
Thread on clutch side: M11x1
The scope of delivery includes a reinforced needle bearing 12x15x15mm.
Technical data:
The scope of delivery includes a reinforced needle bearing 12x15x15mm.
