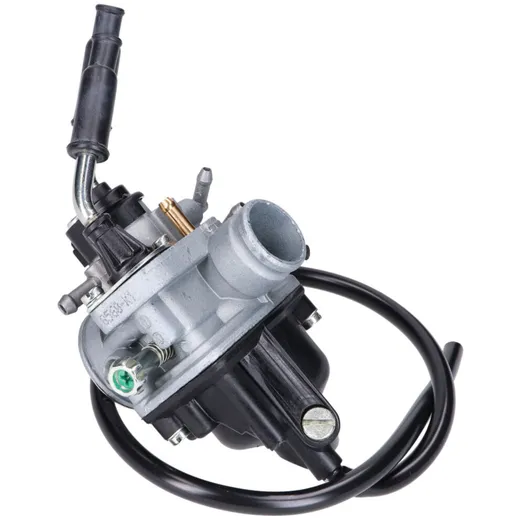

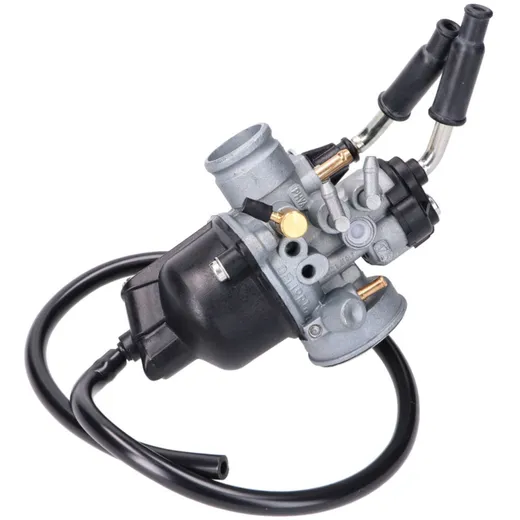

17.5mm Dellorto carburettor suitable as an original replacement for gear shift mopeds built from 2018 up to 2020 and Euro 4 emission standard such as Aprilia RX, SX, Derbi Senda, Gilera RCR. With appropriate adjustment of the jetting also recommended for use on 70cc cylinders!
The carburettor has a manual choke for cable, the original air filter box can be used further.
Main jet: 60 (6mm)
Idle jet: 30
Needle: A25
Intake connection width: 24mm
Air filter connection width: 35mm
Type: PHVA 17.5mm
OEM number for comparison purposes only: Dellorto 08560, CM290001, CM2900016
The carburettor has a manual choke for cable, the original air filter box can be used further.
