High quality crankshaft from swiing suitable for Puch Maxi S, Supermaxi LG2 and Puch X30 NG-2AH mopeds with original ZA50 engine.
Highlights:

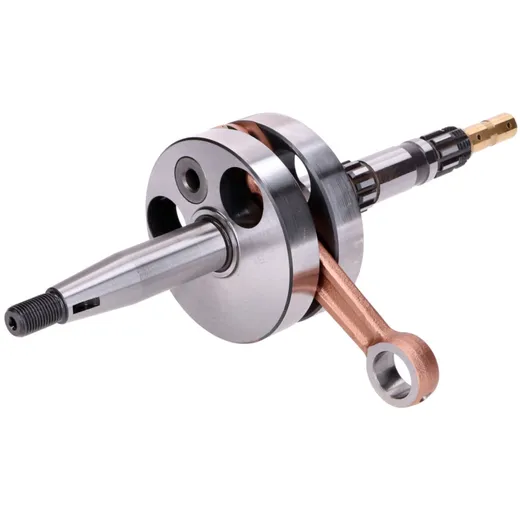

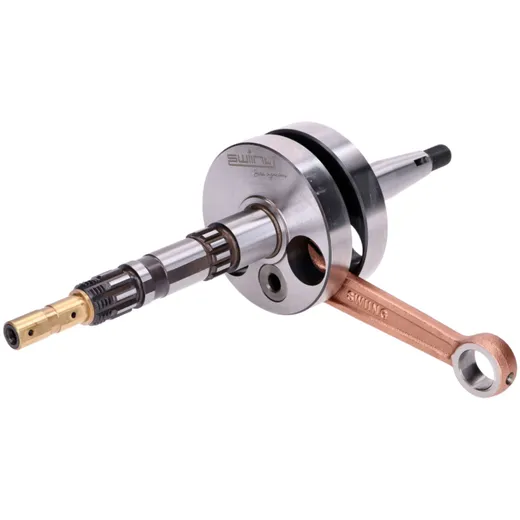

Supplied as shown in the product photo with a 12/15x14.2mm needle bearing.
Highlights:
- Specially adapted clutch side cheek pin for ZA50 engines! Correct mass, correct tolerances and correct thread specifically for Puch mopeds with ZA50 automatic engines.
- Brass pin with 10.2mm diameter (suitable for clutch baskets with 10.25mm inner diameter).
- Solid connecting rod with sturdy connecting rod pin with 16mm diameter. In addition, the pin has improved balancing by a cavity inside.
- Stroke: 43mm
- Weight (incl. connecting rod): 1012g
- Clutch side:
- Total length of cheek pin: 117.8mm
- Diameter: 1st heel: 20mm, 2nd heel: 16.4mm, 3rd heel: 10.2mm
- Thread: M16x1.5mm
- Ingnition side:
- Total length cheek pin: 79.5mm
- Diameter heel: 17mm
- Thread: MF10x1mm
- Diameter crank webs: 69.9mm
- Width crank webs: 34mm
- Diameter connecting rod eye top: 15mm
- Diameter connecting rod pin bottom: 16mm
- Conrod length: 90mm
Supplied as shown in the product photo with a 12/15x14.2mm needle bearing.
