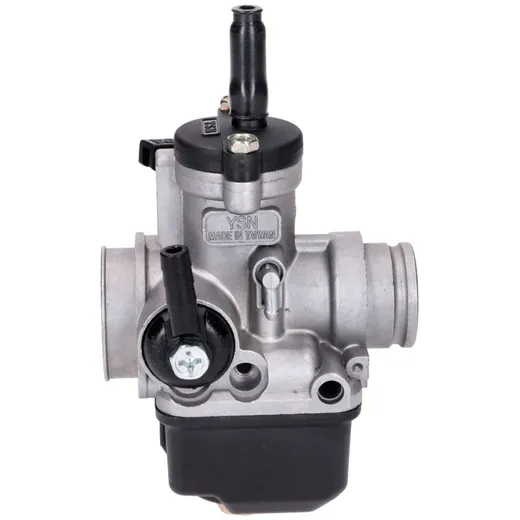

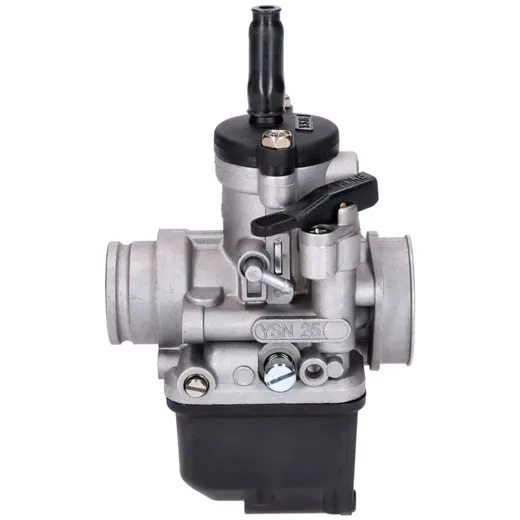

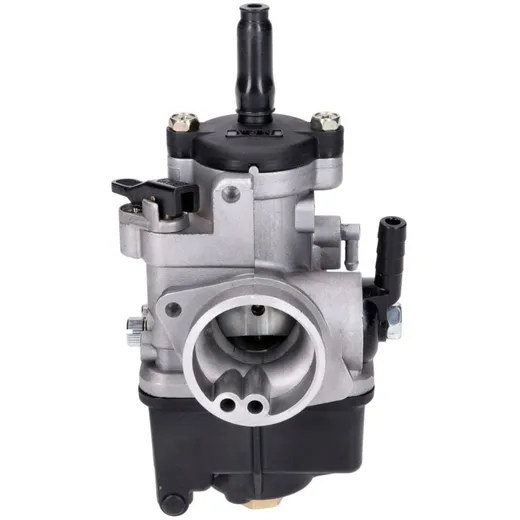

carburetor PHBL 25mm AM, SD, BT w/ lever choke 48790

The 25mm PHBL tuning carburettor is ideal for automatic scooters and Vespa classic gear shift scooters. For the automatic scooter, it is mostly used on a 2-stroke maxi scooter. However, this carburettor can also be used on 50cc with appropriate modification for high-end tuning. On the gear shift scooter, this carburettor is usually installed on a small frame vehicle that keeps the original air filter box. An easy to tune carburettor, which is in no way inferior to the identical Dellorto carburettor.

Engine side connection: 30mm

Air filter side connection: 38mm

Vacuum connection: no

Oil connection: no

Main jet: M6 #102

Idle jet: M5 #70

Choke jet: M5 #60

Carburettor slide: 40

Carburettor needle: D22

Jet body: M6 AQ266
