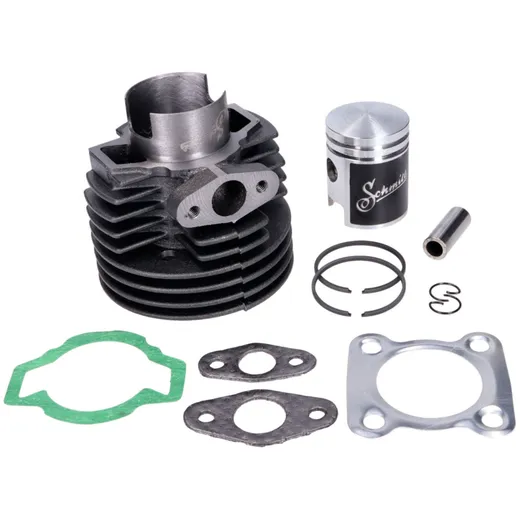

Schmitt cast iron cylinder kit with 60cc and 40mm bore suitable for crankshafts with 12mm piston pin. This sports cylinder fits fan-cooled Puch mopeds such as MS50, MV50 and others with 2, 3 or 4 gears (not R or M engines). The scope of delivery includes a 2-ring piston with a special molybdenum coating. The special sliding properties of this molybdenum coating have a positive effect on running-in. Piston rings, a piston pin (incl. clips) and a top end gasket set are included in the scope of delivery.
Technical data:
ØPiston pin: 12mm
Outer diameter cylinder shroud D=43 mm
Exhaust: 21mm
Inlet: 16mm
Suitable for the following Puch mopeds with 12mm piston pin from approx. 1969:
Puch MS50, MS50V
Puch VS50, VS50D
Puch MV50, MV50X-2, MV50X-3
Puch DS50, DS50-4, DS50-V, DS50-L
Puch R50, R50V
Puch VZ50-4, VZ50V
Puch M50, M50SG
