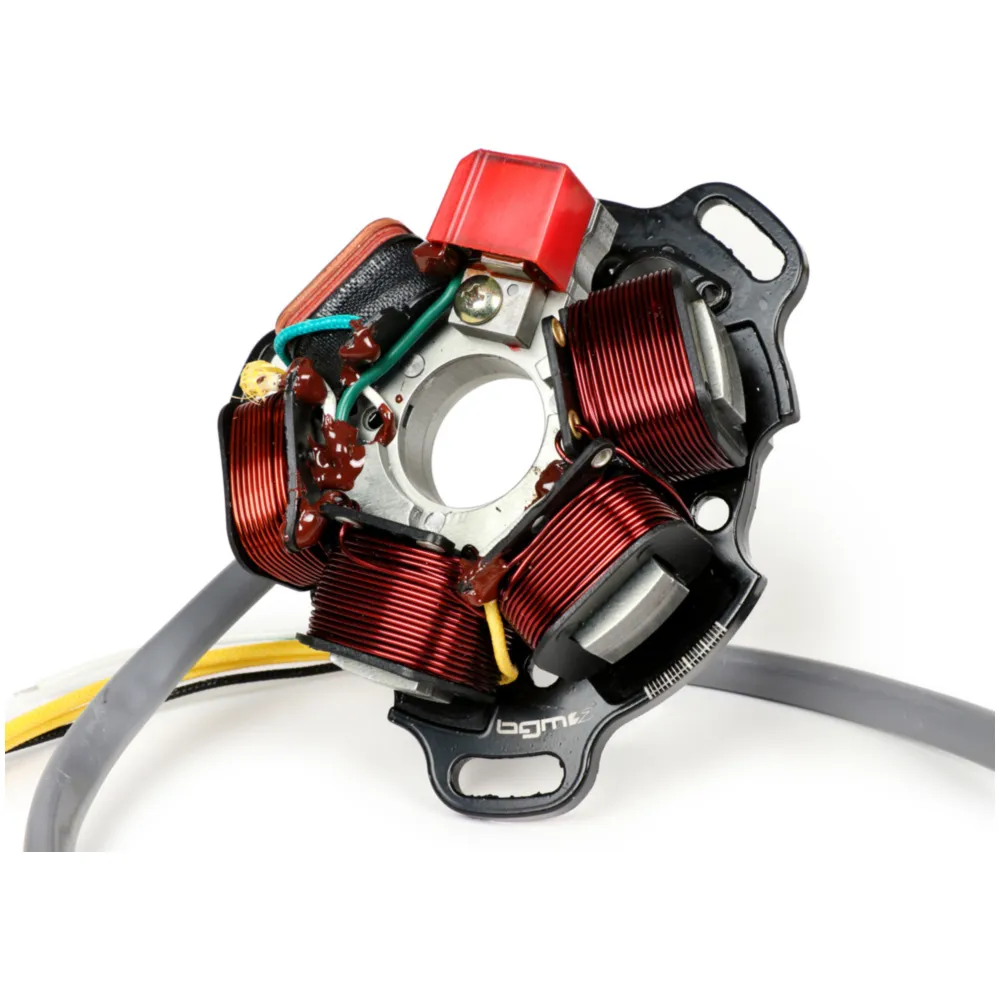

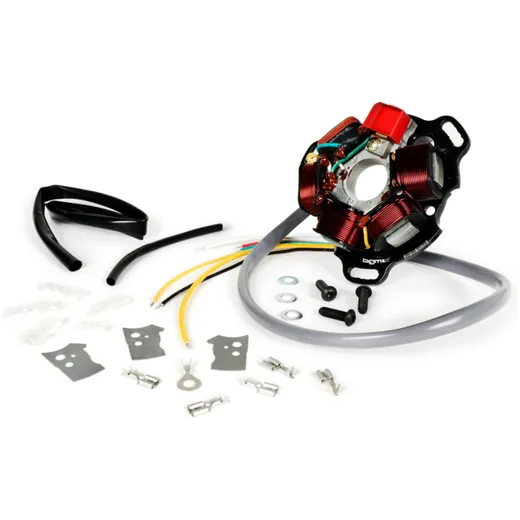

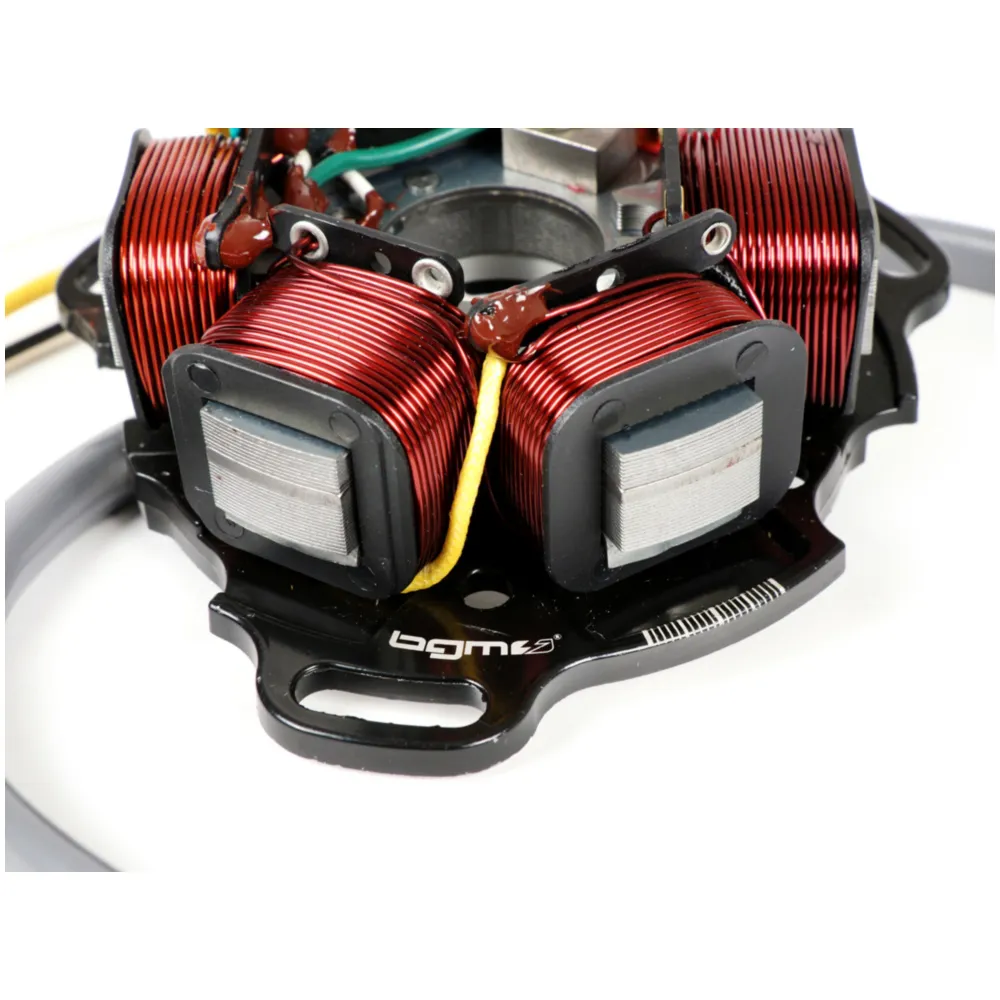

Lambretta bgm PRO Zündr baseplate which can be operated either as a direct current version (=DC) or as an alternating current version (=AC).
For DC operation is a full cheek regulator (eg Art. No. BGM6698) and a battery required. The connection then looks like this:
For conventional B>AC operation the wiring looks like this:
For DC operation is a full cheek regulator (eg Art. No. BGM6698) and a battery required. The connection then looks like this:

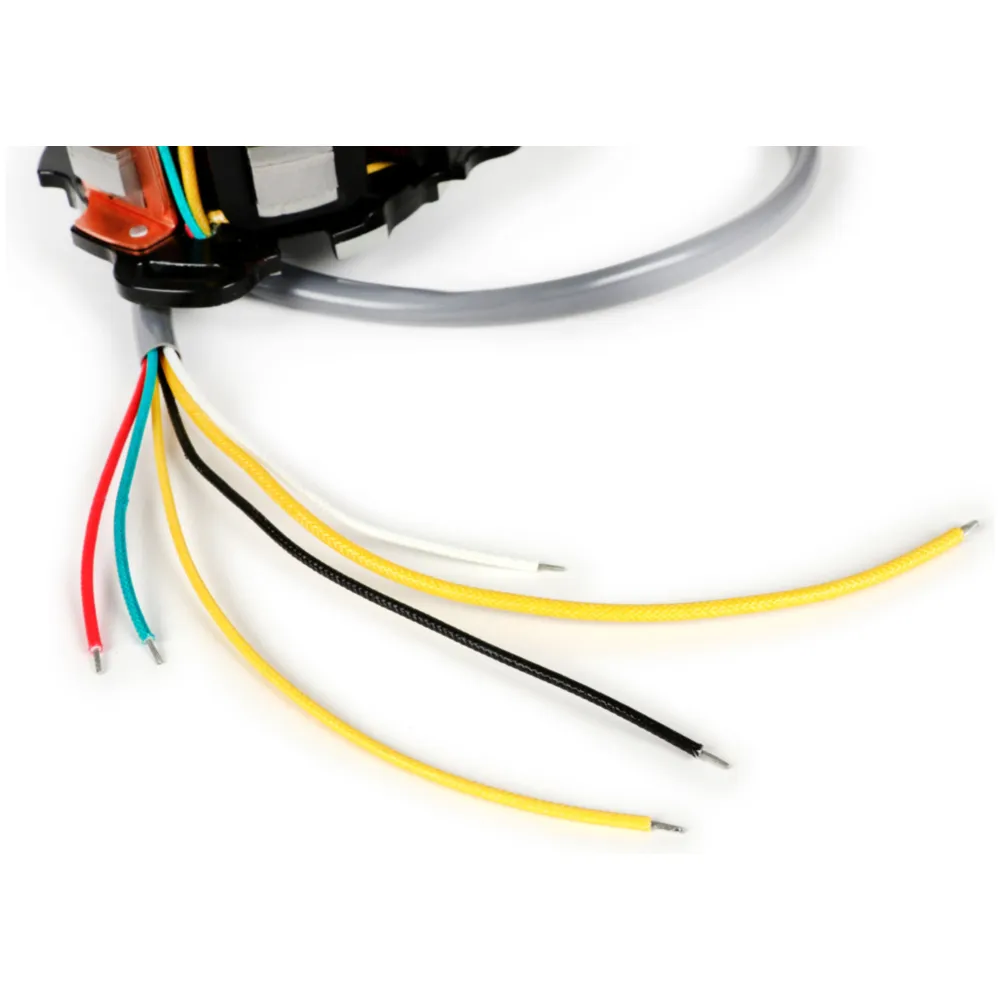

- Green base plate to green CDI
- Red base plate to red CDI
- White base plate to white CDI
- Black base plate to frame/body ground
- Both Yellow wires to yellow from voltage regulator
For conventional B>AC operation the wiring looks like this:
- Green baseplate to green CDI
- Red baseplate to red CDI
- White baseplate to white CDI
- Black baseplate to frame/body ground
Plug thick yellow wire to input on voltage regulator - Plug thin yellow wire to ground
