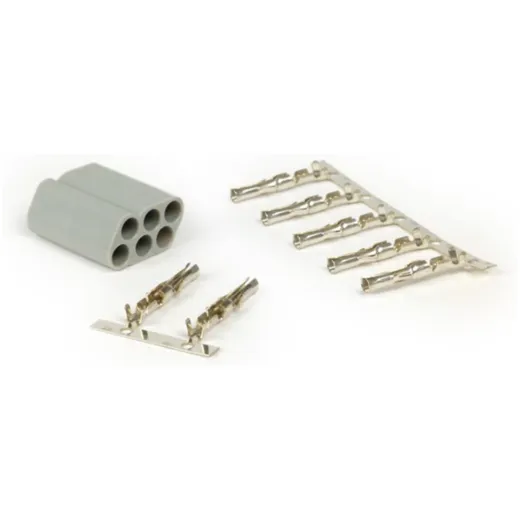

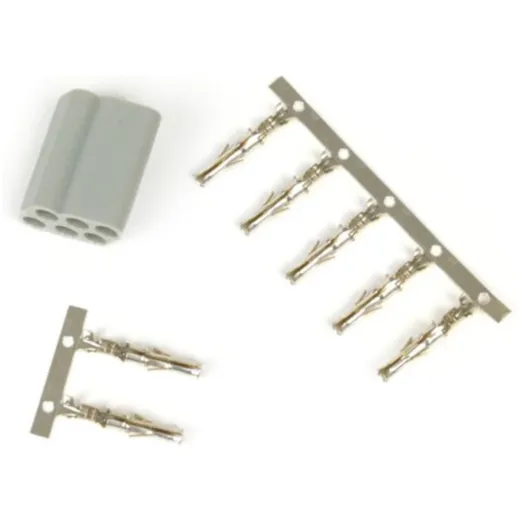

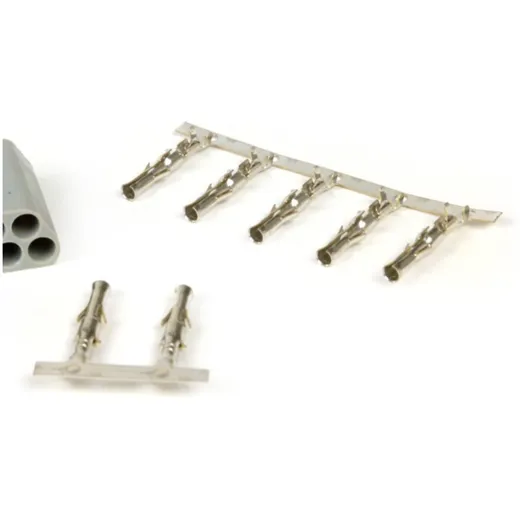

Piaggio specific connector with enclosed contact clamping shoes.
With this, a defective cable harness can be repaired or cable branches or entire cable harnesses can be created by yourself.
Simply connect the cables to the plug contact (crimp or solder with appropriate pliers) and then insert them into the plug. The contact snaps in automatically and is then permanently connected to the plug.
- Two contacts: ignition switch, light switch, electrochoke
- Three contacts: tank sensor, flasher switch, light switch, speedometer
- Four contacts: Cable branch speedo
- Five contacts: light switch, flasher switch
- Six contacts: ignition switch, flasher switch
