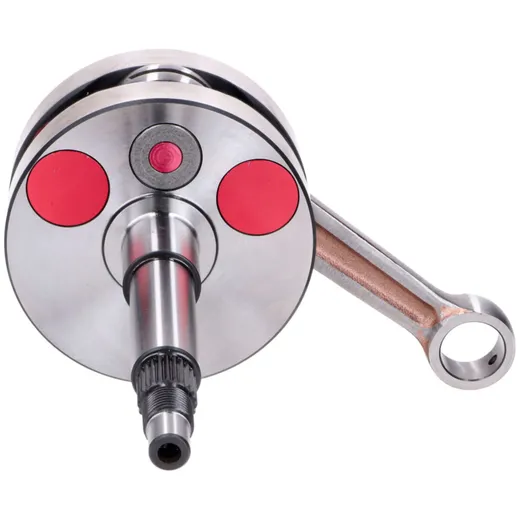

Full circle crankshaft from swiing suitable for various Tomos mopeds such as Classic, Quadro, Sprint or FunSport.
The balancing bores of this racing crankshaft are sealed with aluminum inserts for maximum pre-compression. Supplied as shown including a 12x15x16.2 silver bearing.
Dimensions:
Connecting rod length: 115 mm
Cheek diameter: 70 mm
Cheek width: 13.4 mm
Dimensions over both cheeks: 34 mm
Cheek pin length on clutch side: 93 mm
Cheek pin length on ignition side: 64 mm
Thread on ignition / clutch side: M10 x 1 mm
