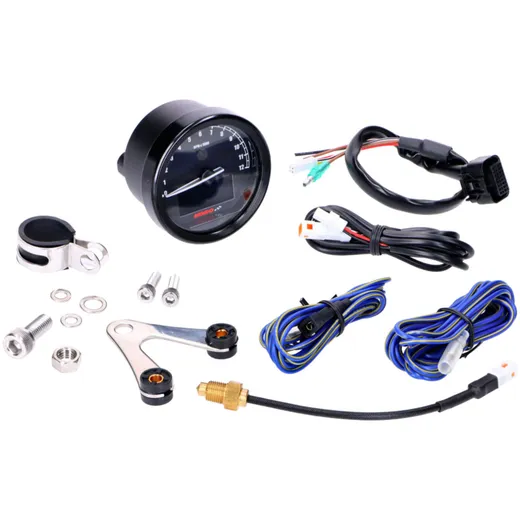

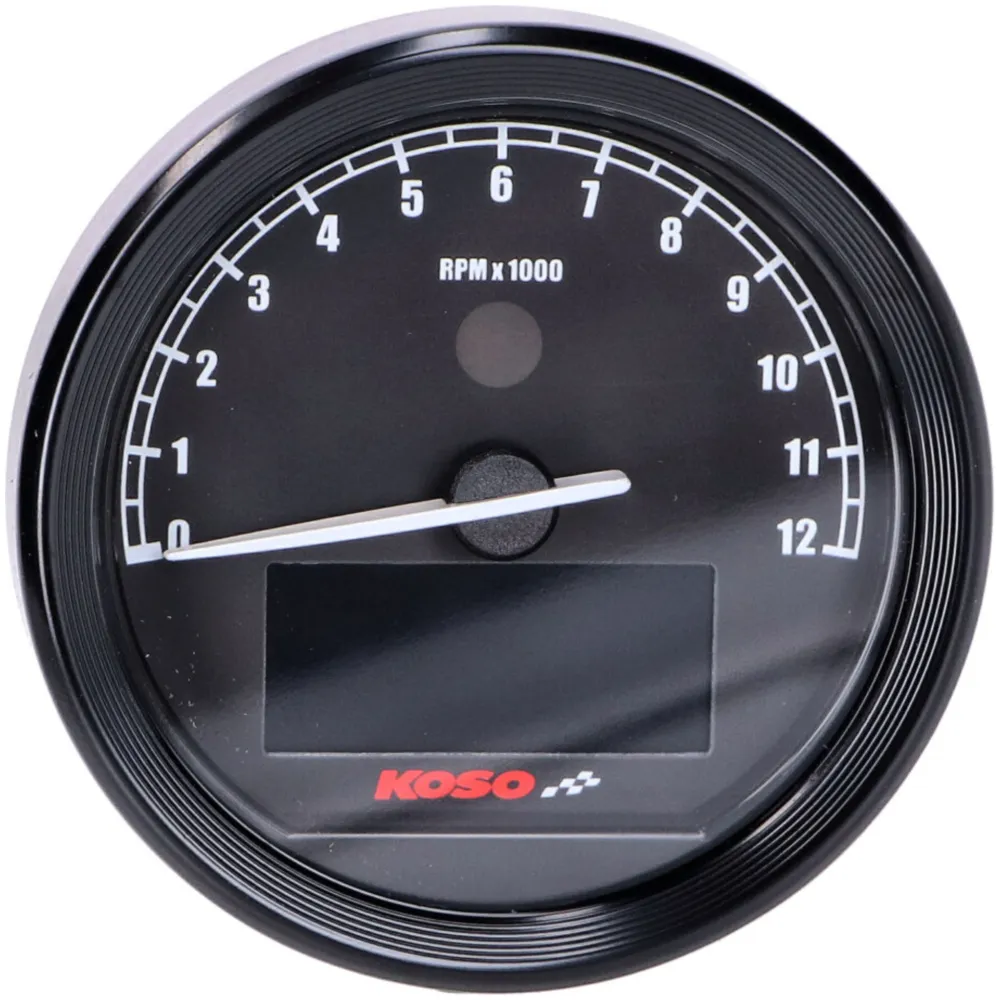

Universal tachometer TNT-05 with display up to 12000 RPM from KOSO. Diameter 60mm.
Display ranges:
Display ranges:
- Speed : 0-12,000RPM (division: 1,000RPM /500RPM)
- Temperature : 0.0-250.0°C (32.0-482.0°F)
- Voltage: DC 8.0-18.0V
- Warning lights: (pre-) switching warning, overheating warning, undervoltage warning, overflow light
- Brightness of the display: 5 levels
- Backlight color: white, red, orange, yellow, green, blue, light blue, purple)
- RPM input pulse setting range: LO-ACT, HI-ACT
- PRPM input signal setting range: P-0.5
- Specification: JIS D 0203(S2)
- Operating voltage: DC 12V
- Operating temperature: -10 to +60°C
- Storage temperature: -20 to +80°C
- Weight: 89g
