SHIN YO 3-pin universal flasher relay, 12V

Product no.: 208-070

SHIN YO 3-pin universal flasher relay, 12V

SHIN YO 3-pin universal flasher relay with adjustable flashing frequency, 12 V.

SHIN YO 3-Pin Universal flasher relay

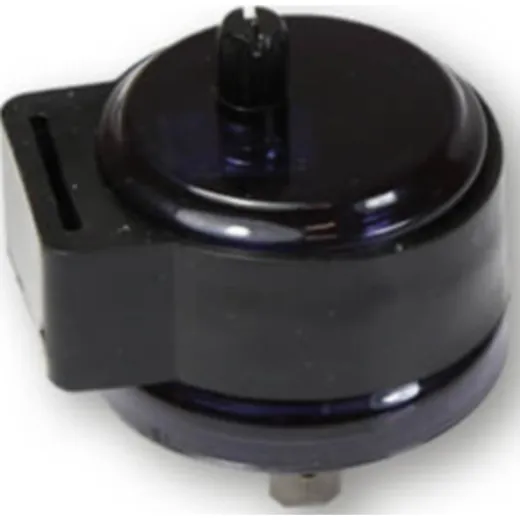

Universally usable flasher relay with adjustable flashing frequency. With this relay it is possible to operate a flasher combination of LED and bulb. A warning flashing function is also provided.

Dimensions
Ø 37 mm
Height: 35 mm

Technical data and connections
Voltage: 12 V
Load absorption: min. 5 mA ~ max. 15 A
Consumers: min. 0.06 W ~ 180 W max.

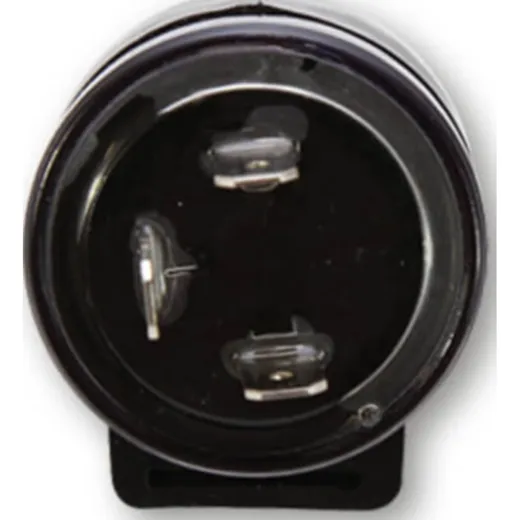

49 B = Battery (12V +) Input
31 G = Ground (-)
49a L = Light (to indicator switch)

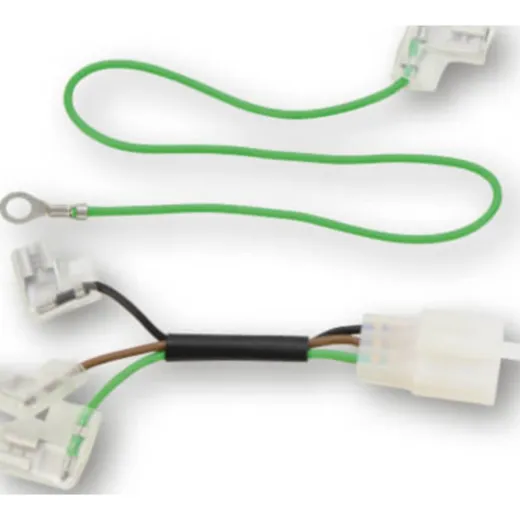

Fasten separate green cable to G (31) and vehicle ground point.
For vehicles with 3-way plug and 2 pin assignment (49, 49a)
For vehicles with 3-way plug and 3 pin assignment (49, 49a, 31) use the green cable on the adapter plug (please check if the assignment is correct).

scope of supply: 1 piece

Note: No function at 6V !
extract StVO: The flashing frequency must be set to 1.5 Hz +/- 0.5 Hz (90 pulses +/-30 pulses per minute).

Price:

14,06 EUR

19 % VAT incl. excl. Shipping costs
