HIGHSIDER 7-inch LED spotlight RENO TYPE 1

Product no.: 223-132

HIGHSIDER 7-inch LED spotlight RENO TYPE 1

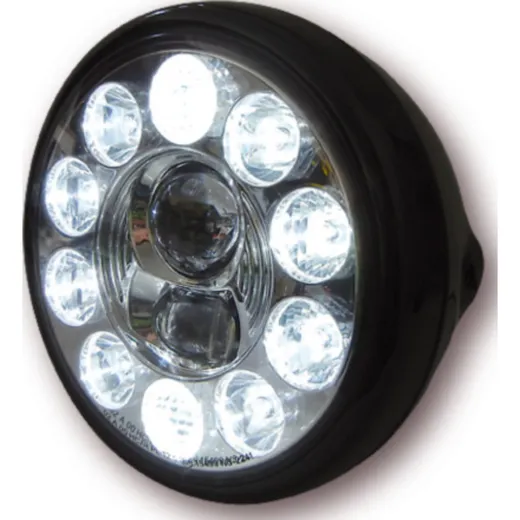

HIGHSIDER 7 LED spotlight RENO TYPE 1, metal housing with insert, clear glass, round, side mounting, E-marked

In different colors available.

HIGHSIDER 7 inch LED spotlight RENO TYPE 1 for side mounting n

innovative power LED spotlight with parking light and round, clear glass. The metal case is high-gloss black lacquered or chrome-plated and features a chrome-plated, asymmetric - right-hand traffic only - insert, E-marked.

Our highlights give your bike an unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Maße headlights:
Housing diameter: 200 mm
Headlight insert diameter: 178 mm
Housing depth: 160 mm
Distance between mounting holes (center - center): 170 mm
Distance between mounting hole (center) and housing

Technical data
Power consumption at 12.5 volts DC:
Dipped beam: only 1.9 amperes (approx. 23.75 watts).
12 volts 1069 lumens
Only the two inner ellipsoid inserts shine.
High beam: only 1.4 amps (about 17.5 watts).
12 volts 1100 lumens
Only the outer LED circuit shines. When the headlamp flasher is activated, all LEDs light up.

Connections on reflector in headlight housing:
Black cable = ground (-)
Red cable = high beam (+)
Blue cable = low beam (+)
Additional 2 cables for parking light: Black = ground (-), red = parking light (+)
connections Mating connector:
Green cable = Ground (-)
Blue cable = High beam (+)
White cable = Low beam (+)

Scope of supply: 1 piece including mating connector with 210 mm cable, for H4 halogen bulbs
Note:
Asymmetrical reflector - only approved for right-hand traffic
