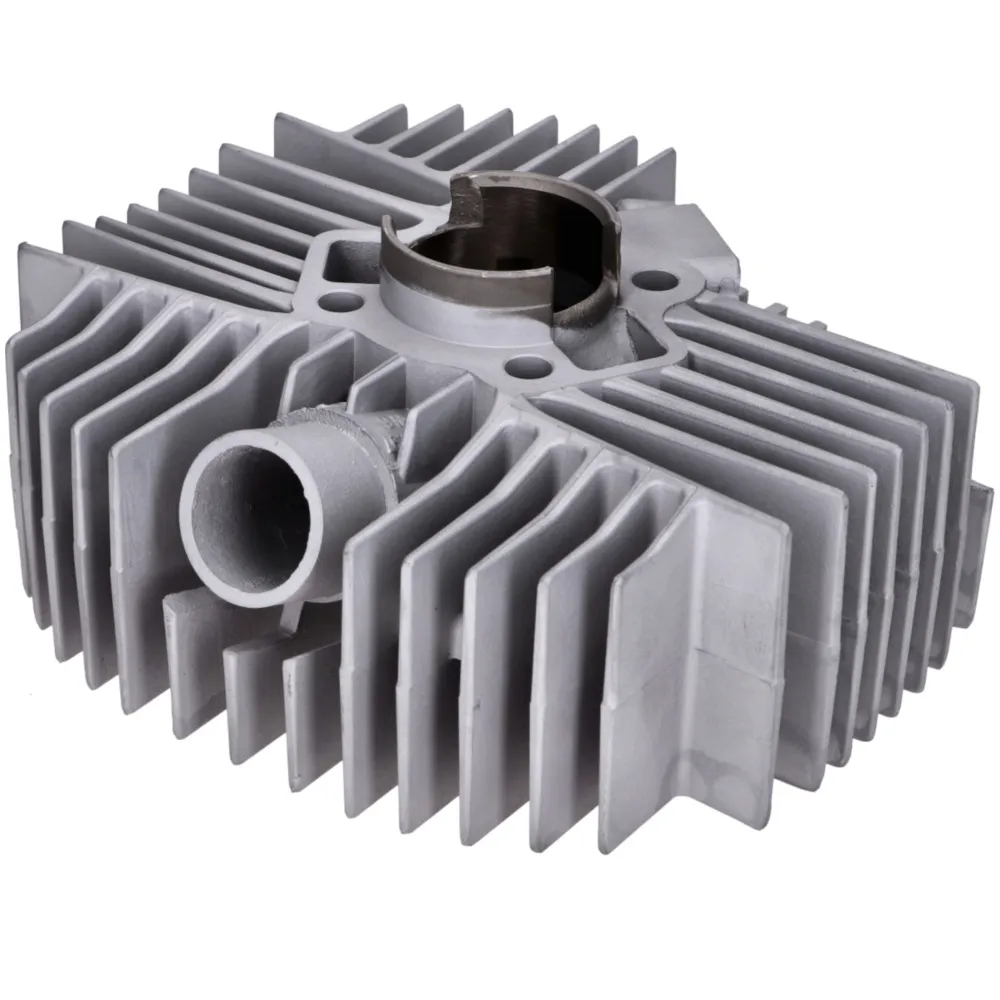

High-quality 6.5 hp cylinder with 50cc displacement and 40mm bore, small stud bolt spacing of 45mm, suitable for Kreidler Florett, Mustang, LF, LFH, LH K 54/32, RMC, Flory MF 12, 13, 23 and Flory 2-, 3-, 4- and 5-speed models with air cooling.

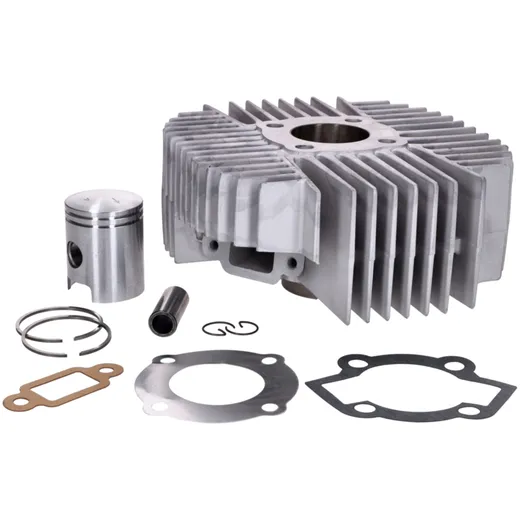

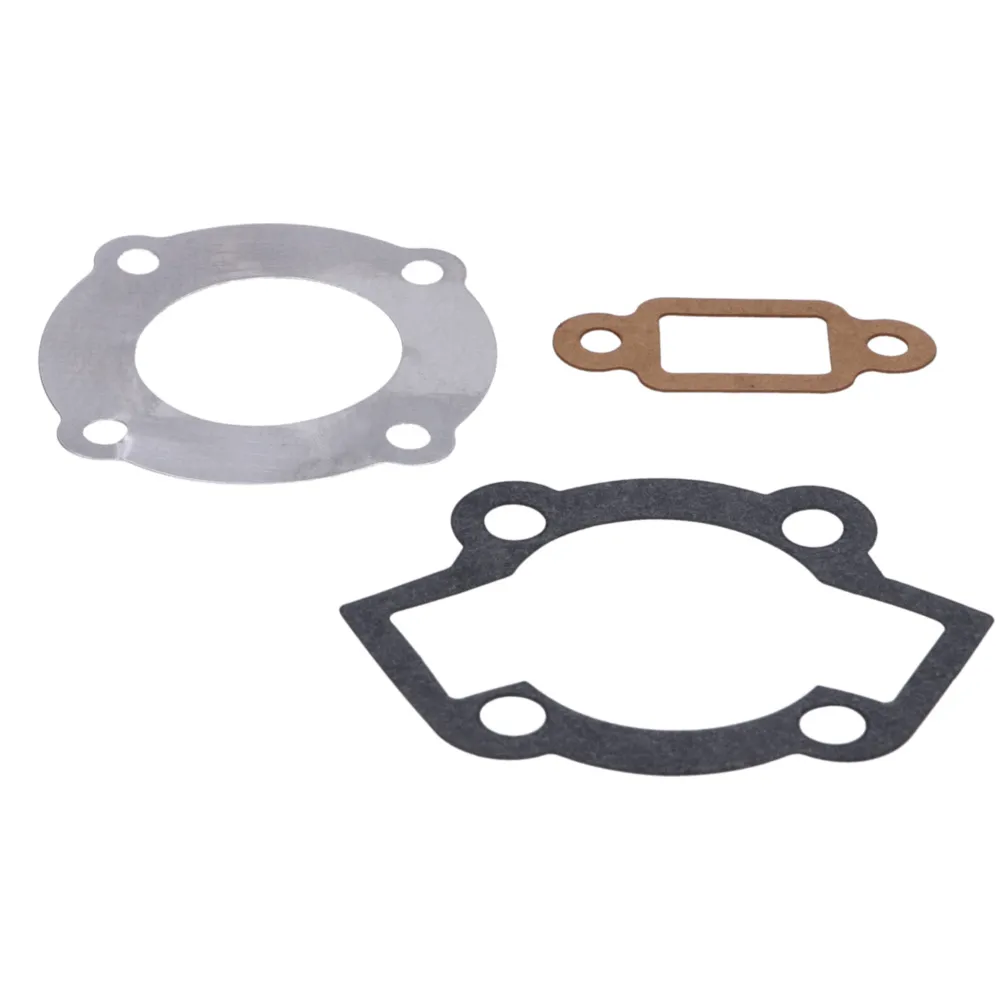

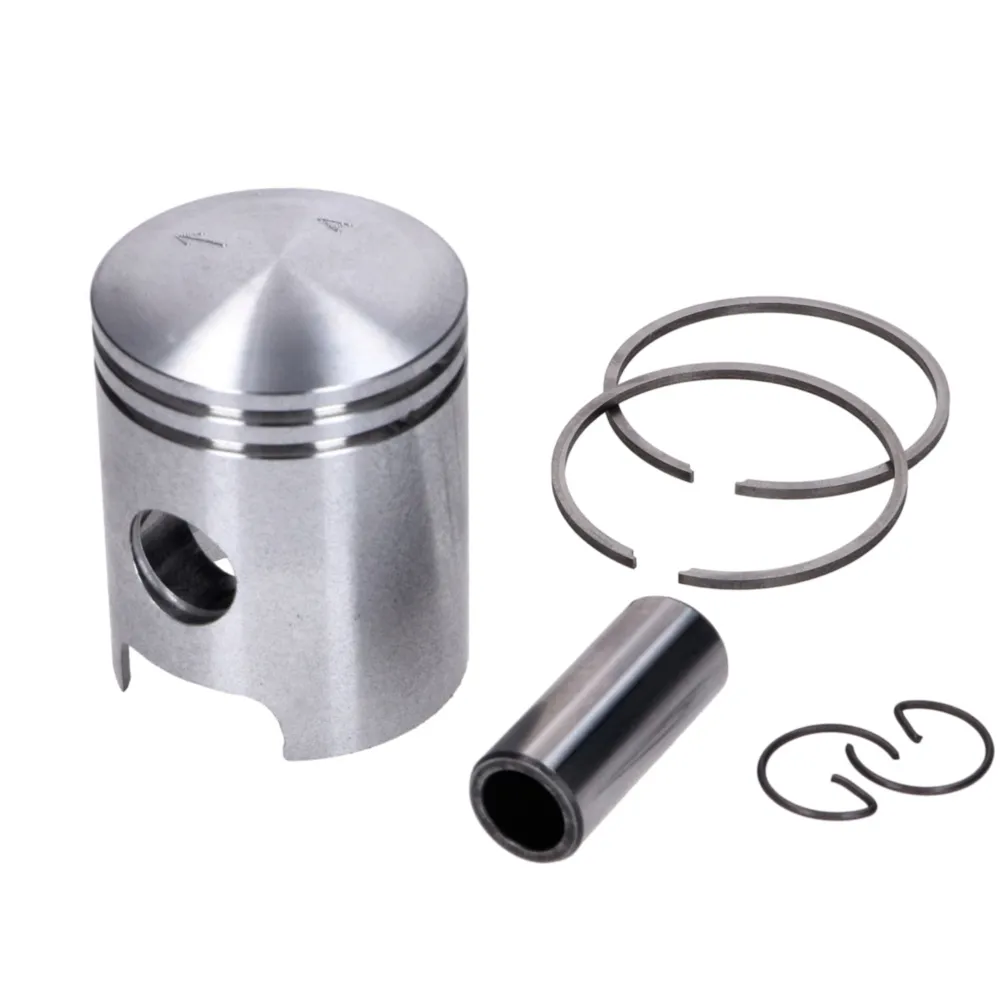

The kit consists of cylinder, piston, piston rings, piston pin, circlips as well as intake gasket, cylinder head gasket and cylinder base gasket.
Specifications:
Displacement: 50cc
Bore: 40mm
Piston pin: 14mm
Transfer ports: 3
Exhaust port: 1
Intake manifold connection: approx. 46mm Stud bolt distance: 44mm
Cylinder material: aluminum with Nikasil coating
Inlet: angled
Manifold connection: 32mm
Outer dimensions: 185mm x 160mm
Cylinder liner base diameter in housing approx. 47mm
Kreidler OEM no. for comparison purposes: 15.43.97
