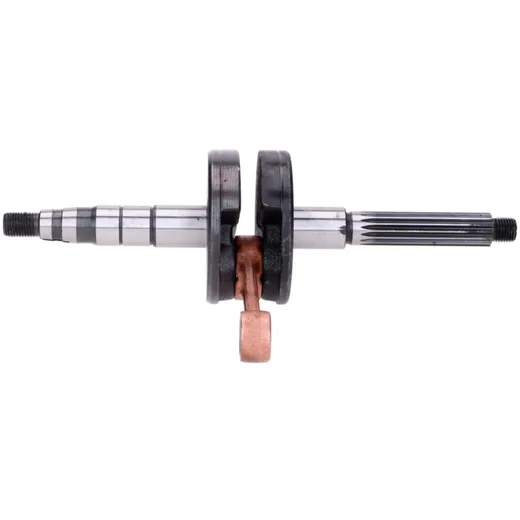

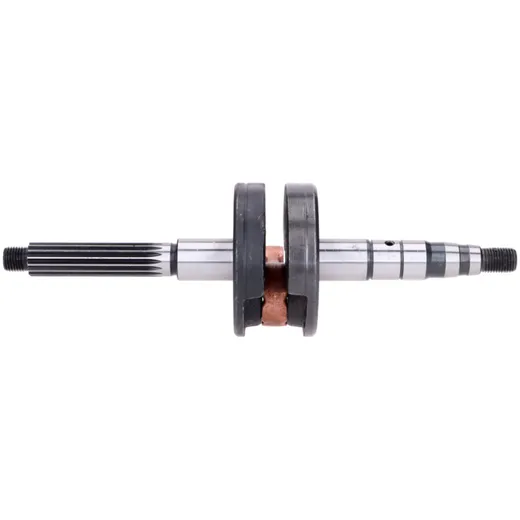

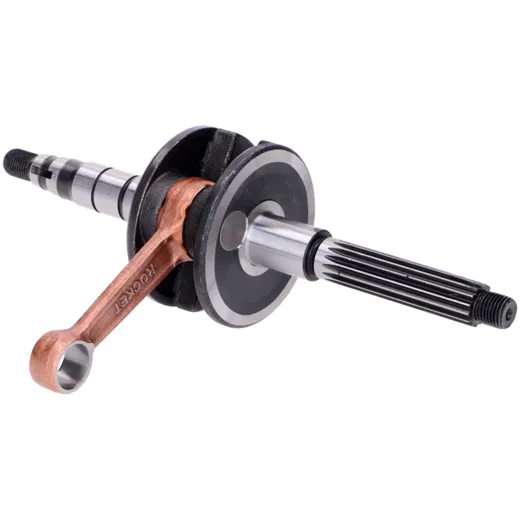

Crankshaft for CPI, Keeway, China 2T E2 KW55049

Crankshaft suitable for CPI and Keeway models with 50cc 2-stroke Minarelli-based engines made in China to Euro2 emissions standard.

Dimensions:
Bearing: for 12mm piston pin
Bearing seat: 20mm on both sides
Shaft side variator: 106.4mm
Shaft side alternator: 92.6mm
Diameter of teeth on variator side: 16mm
Connecting rod: approx. 80mm
Cheeks diameter 72mm
Piston pin diameter: 12mm
Variomatic stub diameter: 16mm
Thread on variator side: M12
Thread on alternator side: M12
