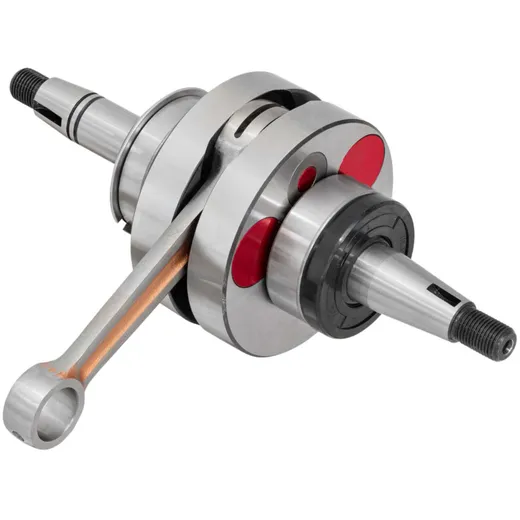

High-end crankshaft suitable for Puch Maxi S / N and Supermaxi LG1 moped / moped with 1-speed E50 engine.
This full cheek crankshaft was specially developed for engines with a high power increase. It impresses with its outstanding speed stability and optimum balance ratio. The balancing bores are sealed with aluminum inserts for maximum pre-compression.
The solid connecting rod uses a more stable, hollow 16 mm connecting rod pin for better balancing. Connecting rod bearings made from silver bearings ensure excellent emergency running properties. The crankshaft is precision-balanced to less than 0.02 mm, which guarantees maximum running smoothness and top performance.
The two C3 ball bearings and the shaft seals are already pre-assembled. The scope of delivery also includes the needle roller bearing and the rear gear ball bearing incl. shaft seal (depending on the engine housing, only one of the two bearings is required).
Technical data:
This full cheek crankshaft was specially developed for engines with a high power increase. It impresses with its outstanding speed stability and optimum balance ratio. The balancing bores are sealed with aluminum inserts for maximum pre-compression.
The solid connecting rod uses a more stable, hollow 16 mm connecting rod pin for better balancing. Connecting rod bearings made from silver bearings ensure excellent emergency running properties. The crankshaft is precision-balanced to less than 0.02 mm, which guarantees maximum running smoothness and top performance.
The two C3 ball bearings and the shaft seals are already pre-assembled. The scope of delivery also includes the needle roller bearing and the rear gear ball bearing incl. shaft seal (depending on the engine housing, only one of the two bearings is required).
Technical data:
- Type of cheek: solid cheeks
- Crankshaft stroke: 43mm
- Conductor length center-center: 90mm
- Total length of crankpin on clutch side: 74mm
- Total length of crankpin on ignition side: 66mm
- Type of thread: MF10x1 (fine thread)
- Thread length: 11mm, 15mm
- Diameter of crank webs: 69.9mm
- Piston pin diameter (B): 12mm
- Diameter of connecting rod eye: 15mm
- Diameter bearing seat (clutch side): 17mm
- Diameter bearing seat (ignition side): 17mm
- Diameter 1st shoulder (clutch side): 22mm
- Diameter 2nd shoulder (clutch side): 17mm
- Diameter 3rd shoulder (clutch side): 15mm
- Length of shoulder (ignition side): 26.3mm
- Width of crank webs: 34mm
- Length 1st shoulder: 9mm
- Length 2nd heel: 14.5mm
- Length 3rd heel: 25mm
- Number of gears: 1 piece
- Dimension needle bearing: 12 / 15 x 14.2mm (axe 12)
- Weight: 968g
- Application area: High end, tuning, racing
