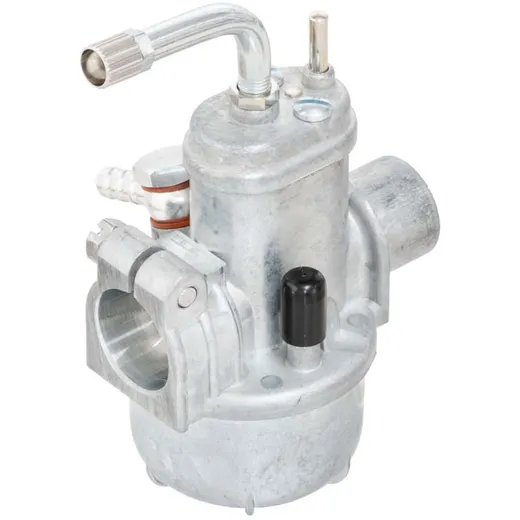

This high-quality carburetor is suitable for Sachs 503 engines as well as for mopeds and mopeds that were fitted with a Bing SRE carburetor as standard. Faithful reproduction of a Bing SRE carburetor with 12 mm diameter.
Note: The adjusting screw is located on the right-hand side of the carburetor when viewed in the direction of travel.
Suitable for Sachs 503 engines type AAL, ABL, 2AL / 2BL, AB, AC.
Technical data:
OEM number for comparison purposes: Pony A2442 / Sachs 0281 115 105
Note: The adjusting screw is located on the right-hand side of the carburetor when viewed in the direction of travel.
Suitable for Sachs 503 engines type AAL, ABL, 2AL / 2BL, AB, AC.
Technical data:
- Carburetor type: SRE
- Mounting type: Clamped plug-in connection
- Width: 55mm
- Nominal diameter: 12mm
- Internal connection diameter: 20mm
- Total length: 65mm
- Height: 112mm
- Inlet diameter inside: 12mm
- Internal outlet diameter: 12mm
- Diameter air filter connection: 20mm
- Diameter fuel hose connection: 6mm 5mm
- Choke actuation: Hand choke
- Nozzle thread: M3.5x0.6 (standard thread)
- Nozzle size: 52
- Torque clamping screw (max.): 4Nm
OEM number for comparison purposes: Pony A2442 / Sachs 0281 115 105
