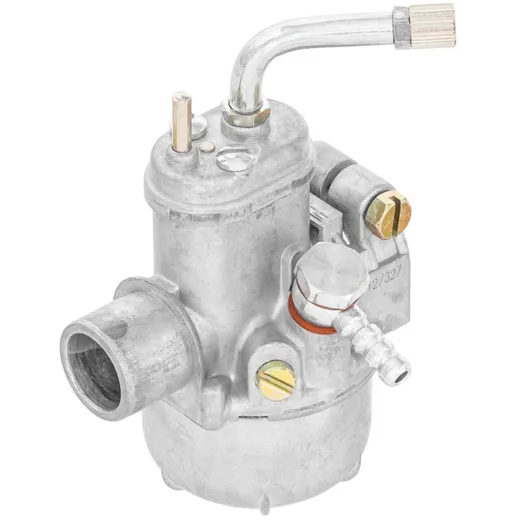

High-quality 15 mm tuning carburetor suitable for Sachs 503 AAL, ABL, 2AL, 2BL, AB, AC and Puch Z 50, Velux X30.

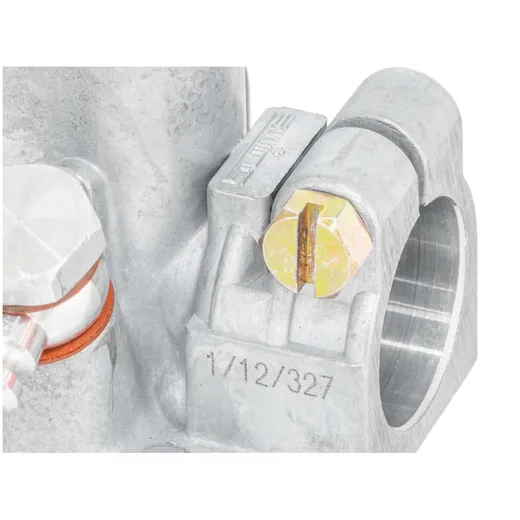

The tuning carburetor is provided with the original number "1/12/327" so that the carburetor cannot be distinguished from the original when fitted.
This carburetor is suitable for various mopeds that are factory-fitted with a Bing SRE carburetor. The prerequisite is that the carburetor adjustment screw is positioned on the right (viewed in the direction of travel). Among other things, it is compatible with models that use the Sachs 503 engine.
Technical data:
The tuning carburetor is provided with the original number "1/12/327" so that the carburetor cannot be distinguished from the original when fitted.
This carburetor is suitable for various mopeds that are factory-fitted with a Bing SRE carburetor. The prerequisite is that the carburetor adjustment screw is positioned on the right (viewed in the direction of travel). Among other things, it is compatible with models that use the Sachs 503 engine.
Technical data:
- Material: aluminum
- Carburetor type: SRE
- Nominal diameter: 15mm
- Mounting type: plug-in connection clamped
- Input diameter inside: 15mm
- Internal outlet diameter: 15mm
- Diameter air filter connection: 20mm
- Internal connection diameter: 20mm
- Diameter fuel hose connection: 6mm
- Total length: 66mm
- Width: 50mm
- Height: 95mm
- Choke actuation: Hand choke
- Nozzle thread: M3.5x0.6
- Nozzle block: 2.17
- Nozzle size: 62
- Torque clamping screw (max.): 4Nm
