Battery Isolator Switch for Motorcycles

Product no.: BTS-145.13.68

Hella battery switch / main switch 100 A

Battery switch for battery main line with 1 nut each for the screw connections / bolts
With switch key, can be pulled off in off-position, current output interrupted
The load capacity at continuous condition is max. 100A at max. 60 °C ambient temperature and a cable of at least 50 mm² connected with ring tongues.

Actuation type: rotary switch

Switch function: normally open contact

Switch positions: 2 ( 0 = off, 1 = on)

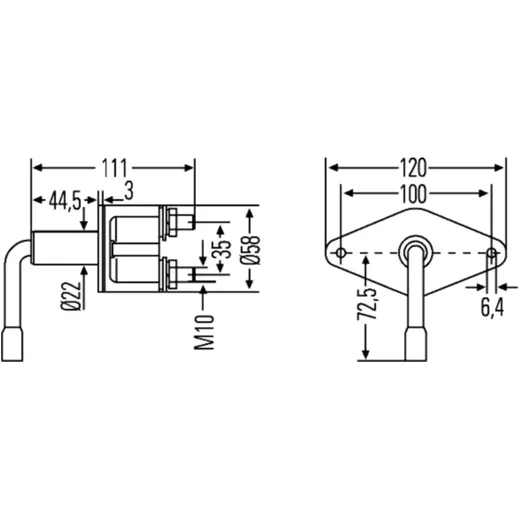

Mounting type: screw connection M10 x 1.5

Number of connections: 2

Protection class: key side IPX4 / connection side IP53

Max. Load capacity at 24 V: 2500 A (10 seconds)

Manufacturer Nr.: Hella 6EK 001 559-001

EAN: 4082300054583

Product Features

182,67 EUR

19 % VAT incl. excl. Shipping costs
