LED Tube T8 7.5W 600mm

Product no.: BTS-162.00.88

LED Tube T8 7.5W 600mm

LEDVANCE LED TUBE T8 UNIVERSAL P 600 mm 7.5W 865

• LED tubes for electronic control gear (ECG), electromagnetic control gear (ECG) and mains voltage, splitter protection.
• Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in CCG, ECG luminaires.
• Compatible with conventional and many commercially available electronic ballasts (see also compatibility list) and mains voltage.
• Low flicker according to EU 2019/2020 (SVM ≤0.4 / PstLM ≤ 1). Glass lamp tube with splinter protection for applications e.g. in the food industry.
• For particularly homogeneous illumination. Mercury-free and RoHS-compliant. Protection class: IP20. Service life: up to 60,000 h.

Product benefits:

• No sagging thanks to glass technology.
• Simple, quick and safe lamp replacement without rewiring.
• Energy savings of up to 66 % (compared to T8 fluorescent lamps).
• Very high switching stability. High luminous flux for demanding lighting tasks.
• Also suitable for operation at low temperatures. Full brightness without warm-up phase, therefore ideally suited in combination with sensor technology.

Areas of application:

• General lighting in ambient temperatures of -20...+45 °C.
• Lighting in industrial production.
• Traffic zones and corridors.
• Supermarkets and department stores.
• Industry.

Features:

• Color temperature 6500 K
• Color rendering index CRI 80-89
• Color consistency (McAdam ellipse) SDCM5
• Protection class (IP) IP20

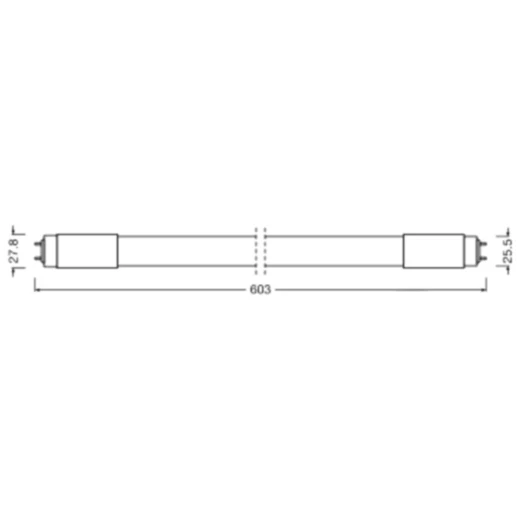

• Length 603 mm
• Voltage type AC
• Nominal voltage 220 V
• Power factor 0.80
• Photobiological safety according to EN 62471 RG0
• Packaging unit 1
• Packaging unit 10
• Weight 0.17
• Weight unit KG
• Weight reference quantity 1
• Base G13
• Diameter 27.80 mm
• Lamp luminous efficacy 146 lm/W
• Lamp shape Tube, double-ended
• Light color according to EN 12464-1 daylight white >5300 K
• Glass/cover design frosted
• Average rated service life 60000 h
• Rated current 38 mA
• Weighted energy consumption in 1,000 hours 8 kWh
• Lamp wattage 7.5 W
• Luminous flux 1000 lm
• Lamp designation T8
• Min. number of switching operations 200000
• Beam angle 190 °
• Rated luminous flux according to IEC 62612 1100 lm
• Energy spectrum A - G
• Energy efficiency class according to EU Directive 2019/2015: D

Manufacturer Nr.: Ledvance 35021149

EAN: 4099854026218
