LED Tube T8 EM Ultra OUTPUT P 1200 mm 15.6W

Product no.: BTS-162.00.93

LED Tube T8 EM Ultra OUTPUT P 1200 mm 15.6W

LEDVANCE LED TUBE T8 EM ULTRA OUTPUT P 1200 mm 15

• LED tubes for electromagnetic ballasts (KVG/WG), splinter protection.
• Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage.
• Low flicker according to EU 2019/2020 (SVM ≤0.4 / PstLM ≤ 1).
• Glass lamp tube with splinter protection for applications e.g. in the food industry.
• For particularly homogeneous illumination. Mercury-free and RoHS-compliant. Protection class: IP20.

Product advantages:

• No sagging thanks to glass tube. Simple, quick and safe lamp replacement without rewiring.
• Energy savings of up to 60 % (compared to T8 fluorescent lamps).
• Very high switching stability.
• High luminous flux for demanding lighting tasks.
• Also suitable for operation at low temperatures.
• Full brightness without warm-up phase, therefore ideally suited in combination with sensor technology.

Areas of application:

• General lighting in ambient temperatures of -20...+50°C.
• Lighting in industrial production.
• Traffic zones and corridors.
• Supermarkets and department stores.
• Industry.

Technical features:

• Suitable for operation with low-loss and conventional ballasts.

Features:

• Color temperature 3000 K
• Color rendering index CRI 80-89
• Color consistency (McAdam ellipse) SDCM5
• Protection class (IP) IP20

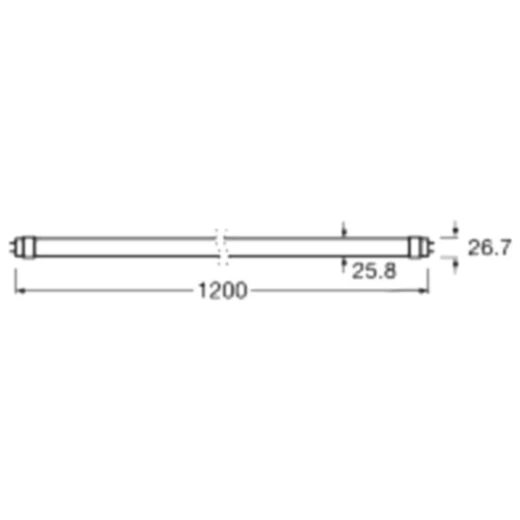

• Length 1212 mm
• Voltage type AC
• Nominal voltage 220 V
• Power factor 0.90
• Photobiological safety according to EN 62471 RG0
• Packaging unit 1
• Packaging unit 10
• Weight 0.2
• Weight unit KG
• Weight reference quantity 1
• Base G13
• Diameter 26.70 mm
• Lamp luminous efficacy 144 lm/W
• Light color according to EN 12464-1 warm white <3300 K
• Frosted glass/cover design
• Average rated service life 60000 h
• Rated current 70 mA
• Weighted energy consumption in 1,000 hours 16 kWh
• Lamp wattage 15.6 W
• Luminous flux 2250 lm
• Lamp designation T8
• Min. number of switching operations 200000
• Rated luminous flux according to IEC 62612 2250 lm
• Energy spectrum A - G
• Energy efficiency class according to EU Directive 2019/2015: D

Manufacturer Nr.: Ledvance 35021208

EAN: 4099854036774

Price:

20,78 EUR

19 % VAT incl. excl. Shipping costs
