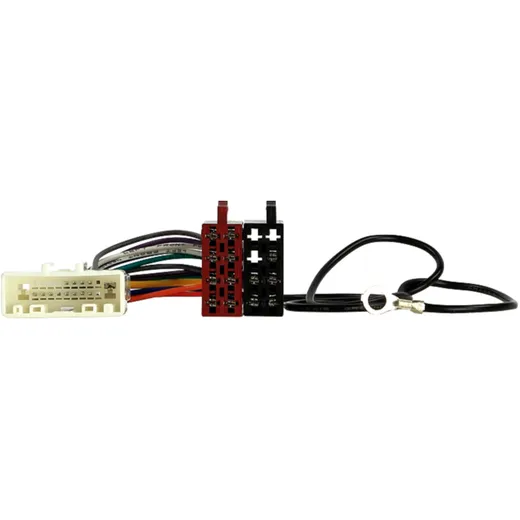

ISO Adapter Cable for Dacia/Nissan/Opel/Renault/ Subaru

Product no.: BTS-194.03.18

ISO Adapter Cable for Dacia/Nissan/Opel/Renault/ Subaru

ISO adapter cable for Dacia / Fiat / Nissan / Opel / Renault / Smart / Subaru / Toyota

• Radio connection cable power/speaker
• ISO adapter cables are used for the passive connection of retrofit devices to the factory plugs present in the radio installation slot.

Depending on the vehicle and equipment, the following signals are provided:

• +12V continuous current (terminal 30)
• +12V ignition (terminal 15)
• Ground (terminal 31)
• Light (terminal 58)
• Antenna remote
• Loudspeaker connection for front/rear loudspeaker

For vehicles with different equipment, signals that are not available may have to be connected to suitable tapping points in the vehicle (e.g. fuse box) or additional adaptations/interfaces may have to be used:

• CAN bus interfaces
• LFB interfaces
• Sound system adapter
• Camera adapter
• The signals must be checked before connection.

Hint:

• Connection: 20 pin Nissan connector
• black: ground (terminal 31)

For the following vehicles:

• Dacia Dokker 2018 - 11/2020*
• Dacia Dokker Stepway 2017 - 11/2020*
• Dacia Duster 2018 - 07/2021*
• Dacia Lodgy 2017 - 06/2021*
• Dacia Logan 2017 - 09/2020*
• Dacia Sandero 2017 - 09/2020*
• Dacia Sandero Stepway 2017 - 09/2020*

Fiat

• Fiat Talento (ZAF) 7/2016 - 2021

Nissan

• Nissan 370Z 2009 - 2020
• Nissan Altima (B10/N17) 2007 - 2019
• Nissan Cube 2010 - 2021
• Nissan Juke 2010 - 2019
• Nissan Maxima (A35/A36) 2008 - 2021
• Nissan Mikra (K12/K13) 2007 - 2019
• Nissan Murano (Z51) 2008 - 2019
• Nissan Navara (D40) 2005 - 2019
• Nissan Note (E11) 2007 - 2019
• Nissan NV200 2010 - 2019
• Nissan NV300 (J4) 11/2016 - 05/2021
• Nissan NV400 (X62) 2014 - 2021**
• Nissan Pathfinder (R51) 2005 - 2013
• Nissan Patrol (Y62) 2011 - 2015
• Nissan Pulsar 2014 - 2018
• Nissan Sentra 2007 - 2019
• Nissan Tiida (C11) 2007 - 2011
• Nissan Qashqai (J10) 2007 - 2019
• Nissan X-Trail (T31) 2008 - 2019

Opel

• Opel Movano B (X62) 2015 - 09/2019
• Opel Movano B (X62) 10/2019 - 08/2021**
• Opel Vivaro B (X82) 08/2014 - 03/2019

Renault

• Renault Captur (R) 06/2013 - 12/2019
• Renault Kangoo II (W) 03/2013 - 05/2021
• Renault Kangoo III (RJK) 05/2021 - 2022**
• Renault Master 09/2014 - 2021**
• Renault Trafic III (I/JL) 09/2014 - 04/2021
• Renault Twingo (AH) 09/2014 - 04/2019*

Subaru

• Subaru BRZ 2012 - 2017
• Subaru Forester 2008 - 2014
• Subaru Impreza 2007 - 2015
• Subaru Justy 2007 - 2011
• Subaru Legacy 2009 - 2020
• Subaru Outback 2009 - 2018
• Subaru XV 2012 - 2016
• Smart
• Smart ForTwo (453) 11/2014 - 06/2019*

Toyota

• Toyota GT 86 2012 - 2017

Notes:

• *Vehicles with Visteon RO13-X07 OEM device.
• **Vehicles with 1 DIN OEM device
• **Vehicles with radio preparation


Manufacturer Nr.: ACV

EAN: 4026724107630

Price:

7,41 EUR

19 % VAT incl. excl. Shipping costs
