INBAY Universal Charging Dock 15W for Motorcycles

Product no.: BTS-194.08.82

INBAY Universal Charging Dock 15W for Motorcycles

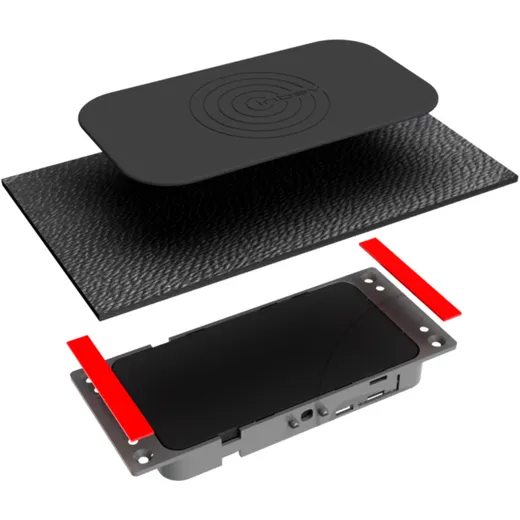

INBAY® Kit 3 coils universal light guide kit 15W.

• This storage tray supports wireless inductive charging of smartphones using INBAY®.
• All INBAY® products work with the globally established Qi standard for wireless charging.
• All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

INBAY® complies with the following technical standards:

• Qi certified by the Wireless Power Consortium.
• E-mark according to ECE regulation 10R - 05 15424
• EMC standard FMC 1278
• FOD - "foreign object detection" - foreign object detection.
• INBAY® in the vehicle:
• No interference with the vehicle bus system
• No interference with vehicle electronics
• No interference with AM/FM/DAB+ reception

Hint:

• Mounting under/on shelves or compartments (see BDA).
• There must be no metallic objects between the charging unit and the smartphone
• Smartphone protective covers must not contain any metallic components

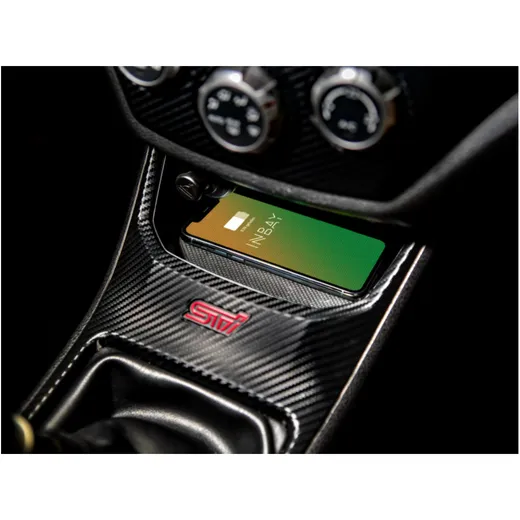

• Article image 3: Installation example Subaru WRX Sti
• Article image 5: Installation example Audi A4 center armrest
• Article image 6: Installation example motorhome shelf

Connection: universal wiring harness +12V, universal light guide kit

• Dimensions charging coil: L = 165.3mm / W = 76mm / H = 14.7mm
• dimensions pad: L = 135mm / W 76mm
• Input voltage: +12V DC
• Charging voltage: 5V, 9V
• Charging current: 1.6A max.

Charging power:

• 5W compatible smartphones > 5W max.
• 7.5W compatible smartphones > 7.5W max.
• 10W compatible smartphones > 10W max.
• 15W compatible smartphones > 15W max.
• Apple iPhone > 7.5W max.

Manufacturer Nr.: ACV

EAN: 4026724102482

Price:

73,19 EUR

19 % VAT incl. excl. Shipping costs
