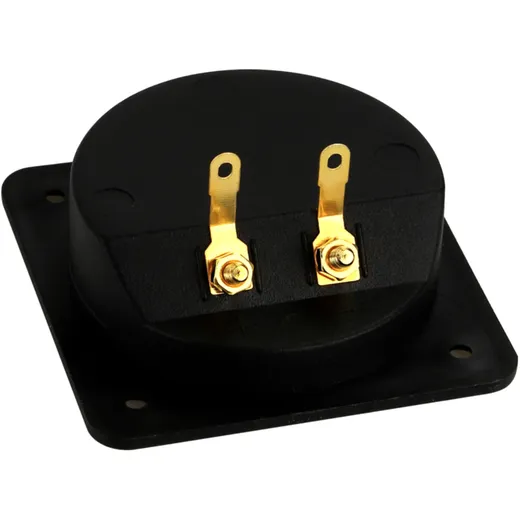

2-Pole Speaker Terminal for Enclosure Construction
Product no.: BTS-194.08.97
2-Pole Speaker Terminal for Enclosure Construction
Loudspeaker terminal two-pole
- Loudspeaker terminal for loudspeaker or subwoofer cabinet construction.

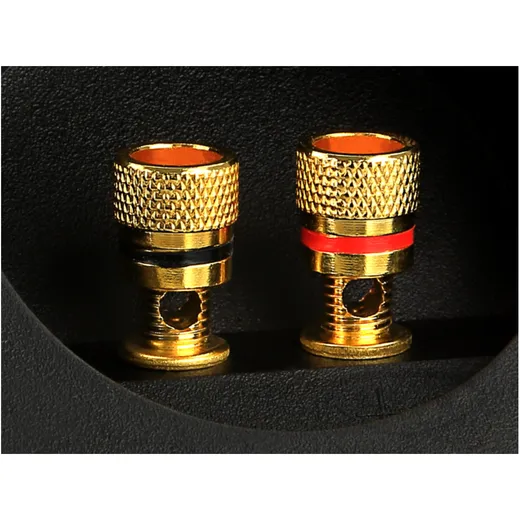

- For connecting speaker cables with 4 mm banana plugs.
- Alternatively as screw terminal for direct connection of speaker cables up to 4 mm² to minimize contact resistance.
- Recessed design to prevent transport damage to the connections.
- Large contact area to create airtightness.
- Gold-plated connections.
For the following applications:
- Loudspeaker enclosure construction
- Subwoofer enclosure construction
Technical data:
- Material: ABS plastic 3 mm
- Installation dimension: 78.3 mm x 78.3 mm
- mounting diameter: Ø 67 mm
- Drill hole spacing: 59 mm
- Drill hole diameter: Ø 4 mm
- Drill hole countersink: Ø 7.3 mm x 1.5 mm
- External connection: Banana plug connection Ø 5 mm / Screw connection Ø 5 mm
- Connection inside: Flat tongue 5.2 mm / Solder tongue
Optional:
Banana plug 1 x red/1 x black 4 mm²> 6mm² Single plug: 30.4070-01Banana plug 1 x red/1 x black 4 mm²>6mm² Double plug: 30.4070-02
Manufacturer Nr.: ACV
EAN: 4026724040609
Product Features
Price:
8,18 EUR
19 % VAT incl. excl. Shipping costs
