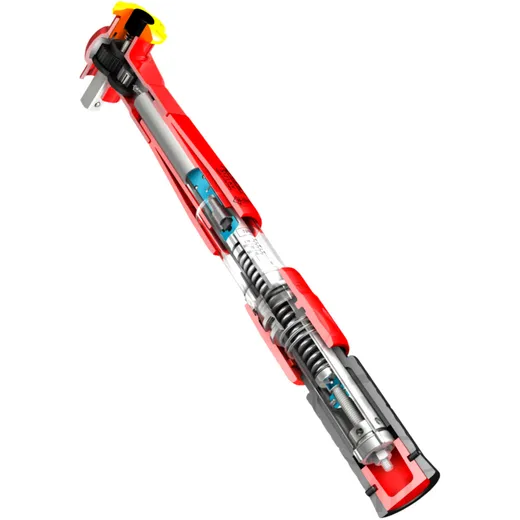

Insulated Torque Wrench 3/8 inch, 5-25 Nm, for Electric Vehicles

Product no.: BTS-607.00.61

Insulated Torque Wrench 3/8 inch, 5-25 Nm, for Electric Vehicles

Hazet torque wrench, insulated 3/8 inch, 5-25 Nm

For work on hybrid & electric vehicles (high-voltage vehicles)

  • Tightening torque min/max 5-25 Nm
  • Tolerance 4%
  • Square 3/8 inch
  • Standard: DIN 3120, DIN EN ISO 6789-2:2017, IEC 60900:2018, ISO 1174-1
  • Right/left release by reversible square,
    thus tightening with set torque both to the right and to the left within the specified tolerance
  • Low weight for easy handling and fatigue-free working
  • Slim design in strict compliance with the required insulation factors (material thickness / overlaps)
  • Made in Germany
  • Length 305 mm
  • VDE protective insulation up to 1000V
  • Scale graduation 0.5 Nm
  • Actuating force min. - max. kg: 2.1 - 11.0 kg
  • Number of teeth: 24 (operating angle 15°)
  • No more turning back: long-term endurance tests have shown that HAZET torque wrenches in the 5000 and 6000 series do not need to be turned back to the smallest scale value

Manufacturer Nr.: Hazet 5109KV

EAN: 4000896235445

Price:

795,05 EUR

19 % VAT incl. excl. Shipping costs
