Multi LOGIKPRUEFTESTER XL SCOPE Plus

Product no.: BTS-609.09.11

Multi LOGIKPRUEFTESTER XL SCOPE Plus

Multi-logic tester "Scope+"

  • The SCOPE+ combines the functions of a multimeter and a multitester in one device.
  • The tester is used for quick diagnosis of automotive electrics.
  • Measurement results are displayed both graphically and acoustically.

Technical data:

  • Automatic measuring range selection "Auto Range": 6/12/24 V
  • Starter test: 12/24 V
  • Alternator test: 12/24 V
  • Measuring range DC voltage: 0 - 50 V DC +-2%.
  • Measuring range DC current / parallel connection:
  • 0 - 80 A +-3%
  • 3 - 30 A (Mini fuse)
  • 3 - 40 A (ATC fuse)
  • 20 - 80 A (Maxi fuse)
  • Measuring range DC current / series connection:
  • 1 - 999 mA +-1% (adapter)
  • 1 - 30 A +-2% (adapter)
  • Measuring range resistance: 0 - 1 MΩ +-2%.
  • Measuring range frequency/ clock rate/ percent
  • Continuity tester: Buzzer/LED
  • Display: graphic LCD backlight
  • Power supply: 3 x AA
  • Dimensions: 260 x 180 65 mm
  • Weight: 0,74 kg

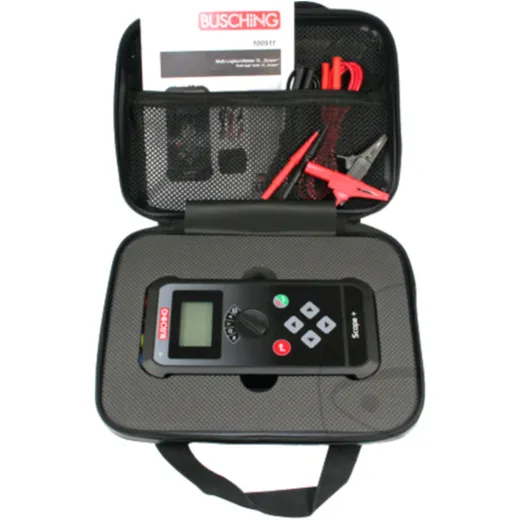

Scope of delivery:

1 x Scope+ multi-logic tester

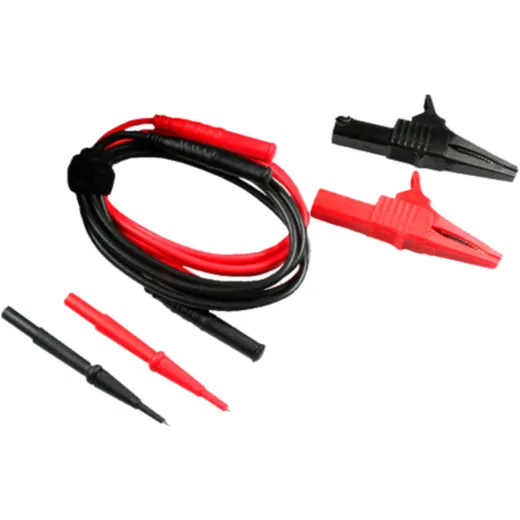

2 x test cable silicone red/black
1 x test adapter silicone max.1A
1 x test adapter silicone max.30A
2 x insulated safety clamps red/black
1 x soft case
1 x instruction manual


Manufacturer Nr.: Busching 100911

EAN: 4053615009650

Product Features
Attribute1Attribute1: MultimeterMultimeter

Price:

364,85 EUR

19 % VAT incl. excl. Shipping costs
