Spring Tensioner for Audi

Product no.: BTS-617.04.10

Spring Tensioner for Audi

Gedore Automotive Internal spring compressor compact KL-0033-10 E Z

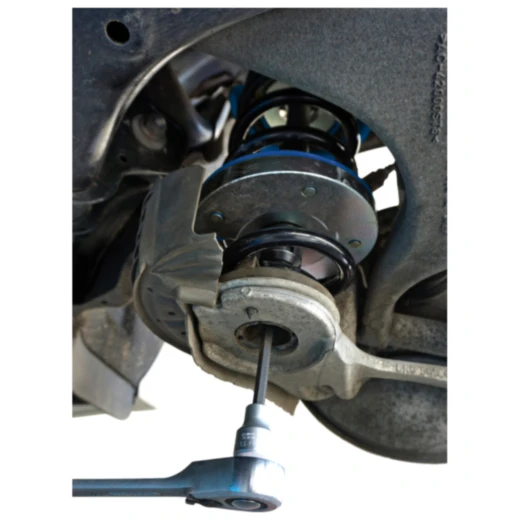

• The inner spring compressor enables the quick and safe removal and installation of suspension springs on transverse and control arm axles directly on the vehicle.

• The particularly compact design of the inner spring compressor makes it easy to insert the clamping cylinder through the control arm, even on VAG vehicles with a very small through-hole (approx. Ø 34 mm) at the bottom of the control arm, for example, thus eliminating the need to loosen various axle components and the resulting wheel alignment.

• Particularly compact design

• Removal and installation of suspension springs on transverse and spatial control arm axles

• Particularly suitable for VAG vehicles with a very small through-hole in the control arm

• Removal of various axle components and the resulting wheel alignment are no longer necessary

• Very high time saving

• Very secure clamping thanks to unique 3-point safety lock

• No additional safety devices required to prevent falling out!

• Special shaft profile prevents the pressure plates from twisting in relation to each other

• Protective inserts prevent damage to the sensitive spring surface coating

• Anti-slip protective inserts prevent the spring from unscrewing

Technical data:

Spring d min. (inside): 80 mmSpring d max. (outside): 130 mm

Working travel: 100 mm

Span (min.): 116 mm

Clamping width (max.): 216 mm

Outer d clamping cyl.: 34 mm

Max. Max. load: 30,000 N

Drive (hexagonal): 19 mm

Weight: 5.7 kg

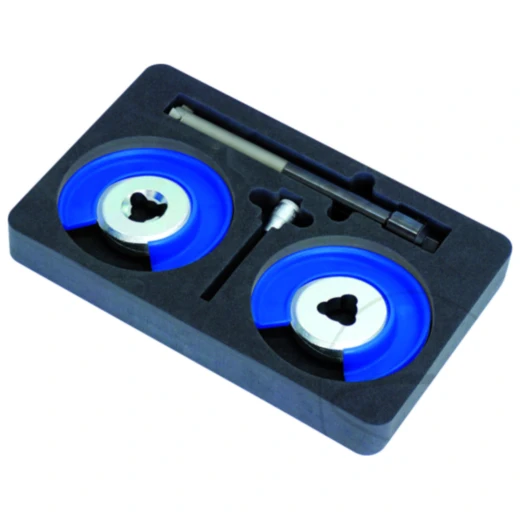

Scope of delivery:

1x KL-0033-100 A - Clamping cylinder

1x KL-0033-1101 - Pressure plate with locking device

1x KL-0033-1102 - Pressure plate with profile

1x KL-0033-16 - Pressure plate pair size 0A

1x IN 19 LK 8-140 - Screwdriver bit

1x KL-0033-1090-1 - Foam insert

Manufacturer Nr.: Gedore Automotive KL-0033-10 E Z

EAN: 4046459181613

Price:

1.473,64 EUR

19 % VAT incl. excl. Shipping costs
