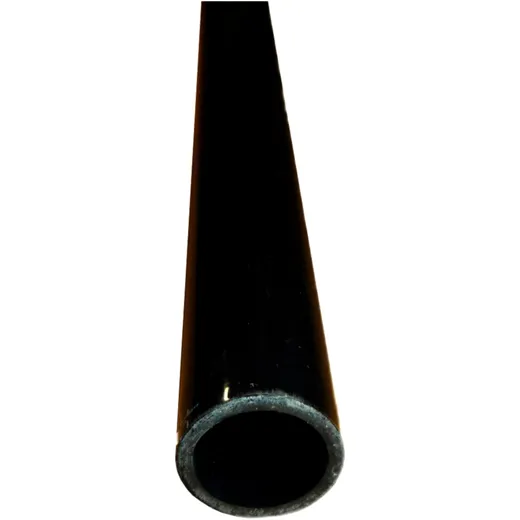

PA-TUBE 15 MM - 3 M Air Pressure Pipe

PA pipe / compressed air line

• Plastic pipe made of high-quality polyamide (PA) 12

• Particularly pressure and temperature resistant, vibration and impact resistant, corrosion and aging resistant, insensitive to moisture as well as lightweight

• Ideally suited for use with John Guest quick connectors

• Light and heat stabilized tu quality

• Hard(er) material / finish

• Can be cold bent

• For clean and easy cutting to length, TECALAN shears are recommended (see accessories).

• Attention: For logistic reasons, the length will be shortened to 2.70 m in case of UPS shipment. If the 30 cm section is to be added back, please order a

• If the 30 cm section is to be reattached, order a straight connector 650.17.04.

• Alternatively: Roll material 650.08.39

Due to its flexibility, a continuous Tecalan pipeline replaces technically complex combinations of steel pipe and rubber hose lines.

• This avoids joints that could lead to leaks

Outer Ø: 15 mm

Inner Ø: 12 mm

Doublet thickness: 1.5 mm

Operating pressure (20 °C): max. 25 bar

Bending radius: min. 90 mm

Color: black

Design according to: DIN73378 hard

Operating temperature (air): - 60 °C to +100 °C

Type of packaging: bar stock

Content: 1 bar

Packing unit: 3 m

Manufacturer Nr.: John Guest PA-RM1512-3M-20E

Price:

30,64 EUR

19 % VAT incl. excl. Shipping costs

10,21 EUR per Meter
