Safety Coupling G 1/4 with Push Button Release

ewo Compressed air safety coupling G 1/4 inch

• Coupling with cylindrical external thread

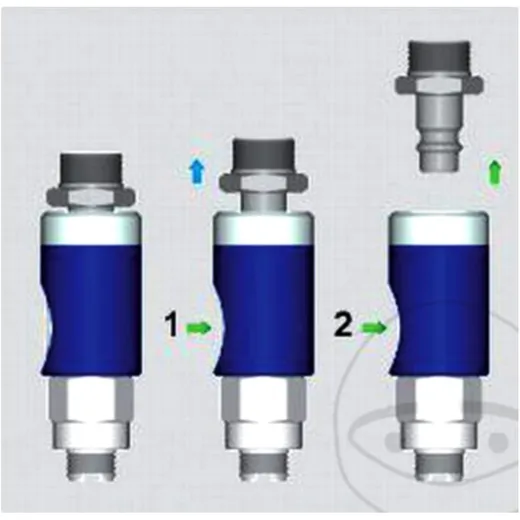

• First deflated - Step 1: The clutch is deaerated by pressing the push button once, the plug still being secured in the sleeve.

• Then uncouple safely - Step 2: If the push button is actuated a second time, the plug is unlocked and can be removed safely.

• Clutch sleeve made of aluminum

• Push button, valve, housing ring made of steel, hardened and galvanized

• Safety according to ISO 4414

Maximum operating pressure: 12 bar

Temperature range: -20 to +70 ° C

Nominal width: 7.2 / 7.4 mm

Flow rate: 1,800 l / min.

Manufacturer Nr.: EWO 411.401

EAN: 4030875149456

Price:

44,26 EUR

19 % VAT incl. excl. Shipping costs
