TRACK SET SEG IV + V for Hella

Product no.: BTS-668.00.04

TRACK SET SEG IV + V for Hella

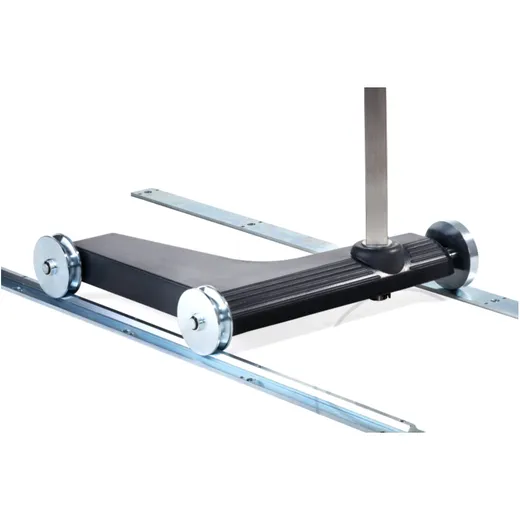

Hella Height-adjustable SEG rail system

• With the levelable rail system, the requirements for the SEG footprint in accordance with the HU headlamp adjustment guideline can be ideally implemented
• Quick to set up, can be readjusted at any time, long service life
• The rails, rollers and screws are high-quality galvanized and the support plates are made of stainless steel

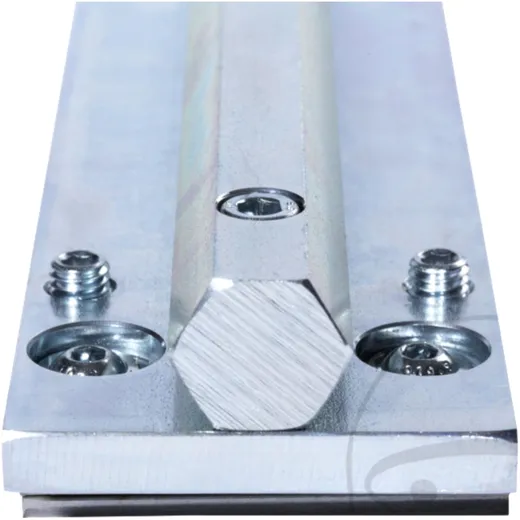

• The horizontal and vertical axes are leveled using ten M8 grub screws with hexagon socket. Two different screw lengths are supplied so that optimum leveling is possible even with large unevenness (max. 20 mm over 3000 mm length)
• Rubber stops at the end prevent unintentional rolling away
• Can only be driven over in neutral position
• For roller set for SEG IV / V, see accessories (JM no.: 668 00 27)

Fig. contains special accessories

Scope of delivery:

2x set of rails 1,500 mm (total length 3,000 mm) with screwed-on hexagonal profile; with flat profile

Manufacturer Nr.: Hella-Gutmann 9XS 861 736-021

EAN: 4082300691566

Price:

834,25 EUR

19 % VAT incl. excl. Shipping costs
