2-DIN Radio Kit to 1-DIN for VAG with Compartment

2-DIN Radio Kit to 1-DIN for VAG with Compartment

1-DIN Kit 1 Seat / Skoda / VW various vehicles passive

Radio bezel 2-DIN with compartment and radio - mounting kit Seat / Skoda / VW

• Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.
• Installation kits include all components to replace an OEM device.
• Depending on the equipment of the vehicle, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.<
• Observe the installation recommendations for the individual components.
• In some cases, not all vehicle functions are supported.
• For example, Trailer Assist, E Call, or other driver assistance systems.
• Check the vehicle menu for various settings before installation.
• Check the function of the settings before final installation.
• Make sure that the original factory radios and adapter plugs shown by us match the equipment of the vehicle.

Note:

• passive
• Connection: 40 Pin Quadlock VW
• Connection: Fakra(m) > DIN/ISO

connection:

• red: +12V ignition current terminal 15 fuse box fused
• orange: +12V dimmer terminal 58 fused fuse box
• Vehicles Skoda > Skoda OEM radio bezel required*/**/***/****
• Vehicles Seat Leon / Toledo > with Golf V/IV style OEM unit with CD slot in unit
• Vehicles VW T5 / Caravelle / Multivan > with Golf V/VI Style device
• Vehicles Seat Leon / Toledo > without OEM device with CD slot in the device panel
• Vehicles VW T5 / Caravelle / Multivan > without rectangular OEM device
• Vehicles without OEM sound system
• Adjustment of the bezel with workshop tools if necessary

Suitable for the following vehicles:

• Seat

SeatSeat Alhambra (7N) 10/2010 - 04/2015Seat Leon (1P) 04/2009 - 11/2012Seat Toledo (NH) 03/2013 - 05/2015

• Skoda

Skoda Fabia (5J) 03/2007 - 04/2010Skoda Fabia (5J) 06/2010 - 06/2014Skoda Octavia (1Z) 06/2004 - 05/2009*Skoda Octavia (1Z) 01/2009 - 03/2013**Skoda Rapid (NH) 10/2012 - 04/2015***Skoda Roomster (5J) 09/2006 - 04/2010Skoda Roomster (5J) 06/2010 - 02/2015Skoda Praktik (5J) 09/2006 - 04/2010Skoda Praktik (5J) 06/2010 - 02/2015Skoda Superb (3T) 07/2008 - 05/2013****Skoda Superb (3T) 06/2013 - 05/2015****Skoda Yeti (5L) 08/2009 - 10/2013*****

• VW

VW Amarok (2H) 03/2010 - 2016VW Amarok (2H) 07/2010 - 08/2016VW Beetle (16) 11/2011 - 06/2016VW Caddy III (2K) 10/2003 - 08/2010VW Caddy III (2K) 09/2010 - 04/2015VW Caravelle (7H) 09/2009 - 05/2015VW CC (3C/35) 06/2008 - 11/2011VW CC (3C/35) 02/2012 - 08/2016VW EOS (1F) 05/2006 - 10/2010VW EOS (1F) 10/2010 - 04/2015vw golf v (1k) 11/2003 - 09/2008VW Golf V (1KM) 06/2007 - 10/2009VW Golf V Plus (1KP) 01/2005 - 02/2009VW Golf VI (1K) 11/2008 - 09/2012VW Golf VI (1KM) 11/2009 - 04/2013VW Golf VI Plus (1KP) 03/2009 - 01/2014VW Jetta V (1KM) 09/2005 - 10/2010VW Jetta IV (162) 01/2011 - 08/2014VW Multivan (7H) 09/2009 - 05/2015VW Passat B6 (3C2) 11/2005 - 07/2010VW Passat B6 (3C5) 08/2005 - 07/2010VW Passat B7 (3C/362) 11/2010 - 10/2014VW Polo V (6R) 06/2009 - 01/2014VW Scirocco III (13) 08/2008 - 04/2014VW Sharan II (7N) 08/2010 - 04/2015VW T5 Transporter (7H) 09/2009 - 05/2015VW Tiguan I (5N) 10/2007 - 02/2011VW Tiguan I (5N) 06/2011 - 04/2016VW Touran I (1T) 01/2003 - 09/2006VW Touran I (1T) 11/2006- 04/2010VW Touran I (1T) 08/2010 - 04/2015

• References:

* Vehicles with Amundsen / Columbus / Nexus OEM Navigation** Vehicles with Bolero / Swing OEM device > Skoda OEM navigation bezel part number: equipment dependent*** Skoda OEM bezel > Skoda part number: 5JA858 415 9B9**** Vehicles with Amundsen / Columbus OEM Navigation**** Vehicles with Bolero / Swing OEM device > Skoda OEM navigation bezel Part number: 3TO8580691QB***** Skoda OEM bezel > Skoda part number: 5L0858069L1 QB

• Scope of delivery:

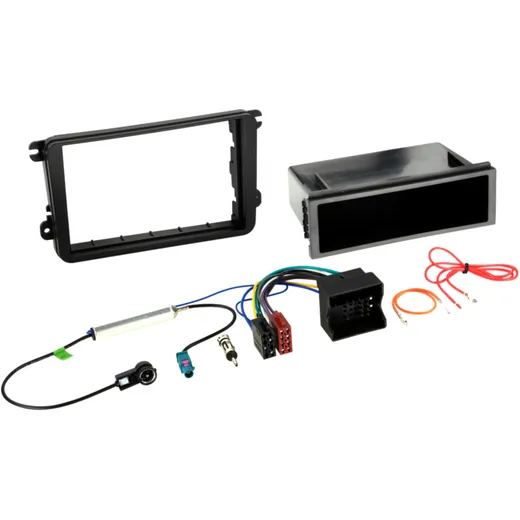

2-DIN RB Seat/Skoda/VW blackStorage compartment for 2-DIN radio trim/1-DIN radio trim > Article: 194 05 55ISO adapter cable Audi/Seat/Skoda/VW Quadlock/Fakra>ISO > Article: 194 03 01Antenna adapter ISO(f)>DIN(m) > Article: 194 01 82

Manufacturer Nr.: ACV

EAN: 4026724336337
