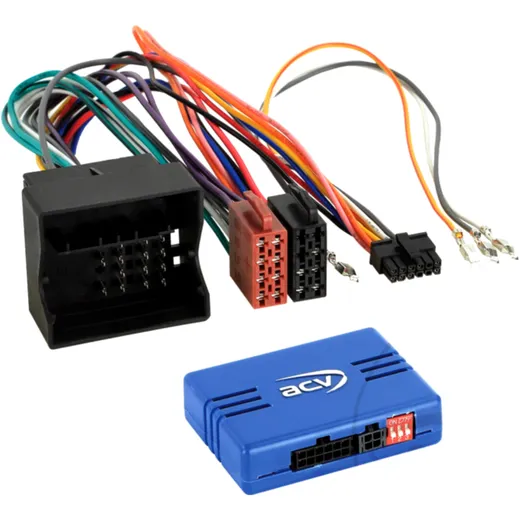

Adapter Cable for VAG 40 Pin Quadlock Steering Wheel Control

Adapter Cable for VAG 40 Pin Quadlock Steering Wheel Control

LFB Audi/Seat/Skoda/VW various vehicles 40Pin Quadlock

Steering wheel remote control adapter Audi / Seat / Skoda / VW

• Keep the original steering wheel remote control functions when replacing your factory radio with an aftermarket radio.
• Please compare the shown connectors of the adapter with the ones in your vehicle and make sure that they fit optically and technically.
• Please also check whether one of the specified original factory radios was installed in your vehicle.

Hint:

• CAN Bus
• Connection: 40 Pin Quadlock VAG connector > Article: 42cx25
• Outputs: 1A max.
• Check dip switch position
• Vehicles Audi / Seat Exeo with 2-DIN OEM device

Suitable for the following vehicles:

• Audi

Audi A1 (8X) 07/2010 - 04/2018*Audi A3 (8P) 05/2003 - 04/2005***Audi A3 (8P) 10/2004 - 04/2013***Audi A4 (B6 (8E) 11/2000 - 10/2005***Audi A4 (B7 (8E) 11/2004 - 02/2009***Audi A5 (8T/8F) 06/2007 - 10/2011***Audi A6 (C5/B4) 05/2001 - 03/2006***Audi Q3 (8U) 10/2011 - 11/2014Audi Q3 (8U) 02/2015 - 06/2018***Audi Q5 (8R) 09/2008 - 05/2012***Audi Q5 (8R) 09/2012 - 01/2017***Audi R8 (42) 04/2007 - 05/2015***Audi TT (8J) 04/2006 - 04/2010***/*****Audi TT (8J) 08/2010 - 03/2014***/*****

• Seat

Seat Alhambra (7N) 10/2010 - 04/2015Seat Altea (5P) 06/2004 - 03/2009Seat Altea (5P) 04/2009 - 07/2015Seat Exeo (3R) 03/2009 - 05/2013***Seat Ibiza (6J) 06/2008 - 02/2012Seat Ibiza (6J) 03/2012 - 06/2015Seat Leon (1P) 09/2005 - 03/2009Seat Leon (1P) 04-2009 - 11/2012Seat Mii (AA) 12/2011 - 06/2019****Seat Toledo (5P) 01/2005 - 10/2009Seat Toledo (NH) 03/2013 - 05/2015

• Skoda

Skoda Citigo (AA) 06/2012 - 05/2017****Skoda Fabia (5J) 03/2007 - 04/2010Skoda Fabia (5J) 06/2010 - 06/2014Skoda Octavia (1Z) 06/2004 - 05/2009Skoda Octavia (1Z) 01/2009 - 03/2013Skoda Rapid (NH) 10/2012 - 04/2015Skoda Roomster (5J) 09/2006 - 04/2010Skoda Roomster (5J) 06/2010 - 02/2015Skoda Superb (3T) 07/2008 - 05/2013Skoda Superb (3T) 06/2013 - 05/2015Skoda Yeti (5L) 08/2009 - 10/2013

• VW

VW Amarok (2H) 07/2010 - 08/2016VW Beetle (16) 11/2011 - 06/2016VW Caddy III (2K) 10/2003 - 08/2010VW Caddy III (2K) 092010 - 04/2015VW Caravelle (7H) 10/2004 - 09/2009**VW Caravelle (7H) 09/2009 - 05/2015**VW CC (3C/35) 06/2008 - 11/2011VW CC (3C/35) 02/2012 - 08/2016VW Eos (1F) 05/2006 - 10/2010VW Eos (1F) 10/2010 - 04/2015VW Fox (5Z) 04/2005 - 06/2011VW Golf V (1K) 11/2003 - 09/2008VW Golf V (1KM) 06/2007 - 10/2009VW Golf V Plus (1KP) 01/2005 - 02/2009VW Golf VI (1K) 11/2008 - 09/2012VW Golf VI (1KM) 11/2009 - 04/2013VW Golf VI (1K) 06/2011 - 07/2016VW Golf VI Plus (1KP) 03/2009 - 01/2014VW Jetta III (1K5/1KM) 09/2005 - 10/2010VW Jetta IV (162) 01/2011 - 08/2014VW Multivan (7H) 02/2003 -09/2009**VW Multivan (7H) 09/2009 - 05/2015**VW Passat B6 (3C2) 11/2005 - 07/2010VW Passat B6 (3C5) 08/2005 - 07/2010VW Passat B7 (3C/362) 11/2010 - 10/2014VW Phaeton (3D) 05/2007 - 05/2010VW Polo IV (9N) 03/2005 - 03/2009VW Polo V (6R) 06/2009 - 01/2014VW Scirocco III (13) 08/2008 - 04/2014VW Sharan II (7N) 08/2010 - 04/2015VW T5 Transporter (7H) 08/2003 - 09/2009**VW T5 Transporter (7H) 09/2009 - 05/2015**VW T6 (7HC) 07/2015 - 08/2019******VW Tiguan I (5N) 10/2007 - 02/2011VW Tiguan I (5N) 06/2011 - 04/2016VW Touareg I (7L) 06/2003 - 11/2006**VW Touareg I (7L) 11/2006 - 02/2010**VW Touran (1T) 01/2003 - 09/2006VW Touran (1T) 11/2006 - 04/2010VW Touran (1T) 08/2010 - 04/2015VW UP! (AA) 12/2011 - 06/2016****

The following signals are provided:

• Ignition
• Lighting
• Reverse gear
• Speedpulse
• Steering wheel remote control

References:

*Vehicles with Chorus OEM unit with monochrome display

**vehicles with OEM sound system > item: 13-1424-26

***vehicles with OEM sound system > item: 13-1424-25

****Vehicles without OEM sound system

*****OEM sound system CAN activation

******Vehicles with Composition Audio MIB Entry OEM device with front AUX/SD/USB

Connection cable for the following radio manufacturers:

• Multilead various devices: 42arc100
• Alpine 3,5mm jack connector: 42arc101
• Blaupunkt 2010> 3,5mm jack connector: 42arc107
• Blaupunkt 2010> Key1 / Key2 / (GND) connector: 42arc000
• China HU Key1 / Key2 / (GND) connector: 42arc000
• Clarion 3.5mm jack connector: 42arc104
• Digital Dynamics single cable connector: 42arc108
• ESX Key1 / Key2 connector: 42arc000
• JVC 3.5mm jack connector: 42arc104
• JVC single cable connector: 42arc105
• Kenwood single cable connector: 42arc105
• Kenwood 2017> 3.5mm jack connector: 42arc107
• Kenwood 2020> Key1 / Key2 / GND connector: 42arc000
• Pioneer 3.5mm jack connector: 42arc107
• Pioneer AVH/DMH/SPH 3.5mm phone jack connector: 42arc1072
• Snooper Key1 / Key2 connector: 42arc000
• Sony 3.5mm jack connector: 42arc107
• XZent single cable connector: 42arc108
• Zenec single cable connector: 42arc108

Manufacturer Nr.: ACV

EAN: 4026724672602
