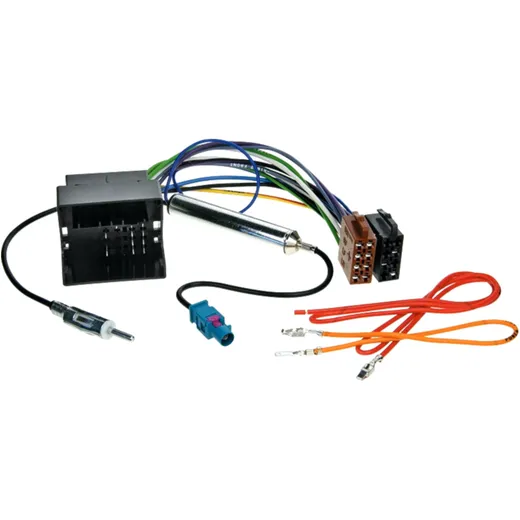

ISO adapter cable Audi / Seat / Skoda / VW

• Quadlock > ISO
• Fakra > DIN phantom power
• ISO adapter cables are used for the passive connection of retrofit devices to the factory plugs present in the radio installation slot.

Depending on vehicle and equipment the following signals are provided:

• 12V continuous current
• 12V ignition
• Ground
• Light
• Antenna remote
• Loudspeaker connection for front and rear loudspeakers

For vehicles with different equipment, signals that are not available may have to be connected to suitable tapping points in the vehicle (example: fuse box) or additional adaptations/interfaces may have to be used:

• CAN bus interfaces
• LFB interfaces
• Sound system adapter
• Camera adapter
• The signals must be checked before connection.

Hint:

• Connection: 40 pin Quadlock VAG connector
• Connection: Fakra Z(m) > DIN(m)
• Vehicles Audi / Seat Exeo with 2-DIN OEM device
• red: +12V ignition current terminal 15 fuse box fused
• orange: +12V light / dimmer terminal 58 fuse box protected

For the following application:

• Radio connection cable power/speaker

For the following vehicles:

• Audi A1 (8X) 07/2010 - 04/2018*
• Audi A3 (8P) 05/2003 - 04/2005**
• Audi A3 (8P) 10/2004 - 04/2013**
• Audi A4 (B6 (8E) 11/2000 - 10/2005**
• Audi A4 (B7 (8E) 11/2004 - 02/2009**
• Audi A5 (8T/8F) 06/2007 - 10/2011**
• Audi A6 (C5/B4) 05/2001 - 03/2006**
• Audi Q3 (8U) 10/2011 - 11/2014**
• Audi Q3 (8U) 02/2015 - 06/2018**
• Audi Q5 (8R) 09/2008 - 05/2012**
• Audi Q5 (8R) 09/2012 - 01/2017**
• Audi R8 (42) 04/2007 - 05/2015**
• Audi TT (8J) 04/2006 - 04/2010**/****
• Audi TT (8J) 08/2010 - 03/2014**/****

Seat

• Seat Alhambra (7N) 10/2010 - 04/2015
• Seat Altea (5P) 06/2004 - 03/2009
• Seat Altea (5P) 04/2009 - 07/2015
• Seat Exeo (3R) 03/2009 - 05/2013**
• Seat Ibiza (6J) 06/2008 - 02/2012
• Seat Ibiza (6J) 03/2012 - 06/2015
• Seat Leon (1P) 09/2005 - 03/2009
• Seat Leon (1P) 04-2009 - 11/2012
• Seat Mii (AA) 12/2011 - 06/2019***
• Seat Toledo (5P) 01/2005 - 10/2009
• Seat Toledo (NH) 03/2013 - 05/2015

Skoda

• Skoda Citigo (AA) 06/2012 - 05/2017***
• Skoda Fabia (5J) 03/2007 - 04/2010
• Skoda Fabia (5J) 06/2010 - 06/2014
• Skoda Octavia (1Z) 06/2004 - 05/2009
• Skoda Octavia (1Z) 01/2009 - 03/2013
• Skoda Rapid (NH) 10/2012 - 04/2015
• Skoda Roomster (5J) 09/2006 - 02/2015
• Skoda Superb (3T) 07/2008 - 05/2013
• Skoda Superb (3T) 06/2013 - 05/2015
• Skoda Yeti (5L) 08/2009 - 10/2013

VW

• VW Amarok (2H) 07/2010 - 08/2016
• VW Beetle (16) 11/2011 - 06/2016
• VW Caddy III (2K) 10/2003 - 08/2010
• VW Caddy III (2K) 092010 - 04/2015
• VW Caravelle (7H) 10/2004 - 09/2009***
• VW Caravelle (7H) 09/2009 - 05/2015***
• VW CC (3C/35) 06/2008 - 11/2011
• VW CC (3C/35) 02/2012 - 08/2016
• VW Eos (1F) 05/2006 - 10/2010
• VW Eos (1F) 10/2010 - 04/2015
• VW Fox (5Z) 04/2005 - 06/2011
• VW Golf V (1K) 11/2003 - 09/2008
• VW Golf V (1KM) 06/2007 - 10/2009
• VW Golf V Plus (1KP) 01/2005 - 02/2009
• VW Golf VI (1K) 11/2008 - 12/2012
• VW Golf VI (1KM) 11/2009 - 04/2013
• VW Golf VI (1K) 06/2011 - 2013
• VW Golf VI Plus (1KP) 03/2009 - 01/2014
• VW Jetta III (1K5/1KM) 09/2005 - 10/2010
• VW Jetta IV (162) 01/2011 - 08/2014
• VW Multivan (7H) 02/2003 -09/2009***
• VW Multivan (7H) 09/2009 - 05/2015***
• VW Passat B6 (3C2) 11/2005 - 07/2010
• VW Passat B6 (3C5) 08/2005 - 07/2010
• VW Passat B7 (3C/362) 11/2010 - 10/2014
• VW Phaeton (3D) 05/2007 - 05/2010
• VW Polo IV (9N) 03/2005 - 03/2009
• VW Polo V (6R) 06/2009 - 01/2014
• VW Scirocco III (13) 08/2008 - 04/2014
• VW Sharan II (7N) 08/2010 - 04/2015
• VW T5 Transporter (7H) 08/2003 - 09/2009***
• VW T5 Transporter (7H) 09/2009 - 05/2015***
• VW T6 (7HC) 07/2015 - 08/2019
• VW Tiguan I (5N) 10/2007 - 02/2011
• VW Tiguan I (5N) 06/2011 - 04/2016
• VW Touareg I (7L) 06/2003 - 11/2006***
• VW Touareg I (7L) 11/2006 - 02/2010***
• VW Touran (1T) 01/2003 - 09/2006
• VW Touran (1T) 11/2006 - 04/2010
• VW Touran (1T) 08/2010 - 04/2015
• VW UP! (AA) 12/2011 - 06/2016***

References:

• *Vehicles with Chorus OEM device with monochrome display.
• **vehicles with OEM sound system > item: 13-1424-26
• ***Vehicles without OEM sound system
• ****Vehicles without OEM sound system CAN activation

Manufacturer Nr.: ACV

EAN: 4026724111750
