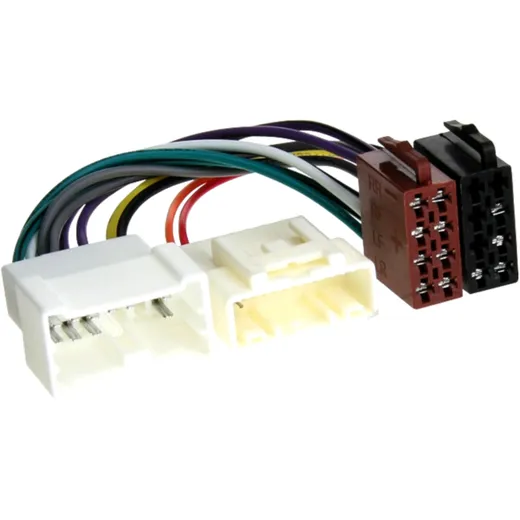

ISO Adapter Cable for Dacia/Mercedes-Benz/Renault/Opel

ISO Adapter Cable for Dacia/Mercedes-Benz/Renault/Opel

ISO adapter cable various vehicles 12Pin/24Pin Dacia

• This adapter allows the radio conversion from OEM device to a standard DIN device.
• Radio connection cable power/speaker
• ISO adapter cable Dacia / Fiat / Mercedes / Nissan / Opel / Renault
• ISO adapter cables are used for passive connection of retrofit devices to the factory plugs present in the radio installation slot.

Depending on the vehicle and equipment, the following signals are provided:

• 12V continuous current
• 12V ignition
• Ground
• Light
• Antenna remote
• Loudspeaker connection for front and rear loudspeakers

For vehicles with different equipment, signals that are not available may have to be connected to suitable tapping points in the vehicle (e.g. fuse box) or additional adaptations/interfaces may have to be used:

• CAN bus interfaces
• LFB interfaces
• Sound system adapter
• Camera adapter
• The signals must be checked before connection.

Hint:

• Connection: 12 pin / 24 pin Dacia connector
• Vehicles with CAN bus if necessary +12V ignition current (terminal 15) fuse box protected

For the following vehicles:

• Dacia Dokker (SD) 12/2012 - 11/2020*
• Dacia Dokker Stepway (SD) 11/2014 - 11/2020*
• Dacia Duster (SD/SR Facelift) 11/2013 - 07/2021*
• Dacia Lodgy (SD) 06/2012 - 06/2021*
• Dacia Lodgy Stepway (SD) 11/2014 - 06/2021*
• Dacia Logan MCV (SD) 07/2013 - 09/2020*
• Dacia Sandero (SD) 01/2013 - 09/2020*
• Dacia Sandero Stepway (SD) 01/2013 - 09/2020*

Fiat

• Fiat Talento (ZAF 296) 07/2016 - 2021**

Mercedes

• Mercedes Citan (W415) 10/2012 - 12/2020

Nissan

• Nissan NV300 (J4) 11/2016 - 05/2021*
• Nissan NV400 (X62) 2014 - 2019
• Nissan NV400 2020 - 2021*****
• Nissan Primastar (X83 Facelift) 01/2011 - 05/2015***

Opel

• Opel Movano B (X62) 06/2013 - 09/2019**
• Opel Movano B (X62) 10/2019 - 08/2021*****
• Opel Vivaro B (X82) 06/2014 - 01/2019**

Renault

• Renault Capture (R) 06/2013 - 12/2019**
• Renault Clio (IV X98) 11/2012 - 04/2019
• Renault Grand Scenic 04/2012 - 09/2016***
• Renault Kangoo (W) 03/2013 - 12/2020
• Renault Master 09/2014 - 09/2019
• Renault Master (4G) 10/2019 - 2021*****
• Renault Megane 3 04/2012 - 12/2013****
• Renault Scenic (JZ) 02/2012 - 09/2016***
• Renault Trafic III (E82/F82) 09/2014 - 04/2021**
• Renault Twingo (N) 01/2012 - 07/2014***
• Renault Wind 08/2010 - 08/2013***

* Notes:

• * Vehicles 2017> with Visteon RO13-X07 OEM device without CAN bus: 194 03 18
• ** Vehicles with OEM Navigation
• *** Vehicles with OEM USB device
• **** Vehicles with Radio+ Continental OEM device
• ***** Vehicles with radio preparation

Manufacturer Nr.: ACV

EAN: 4026724124330
