Radio Kit 2-DIN to 1-DIN for VAG Cars with Storage Compartment

Radio Kit 2-DIN to 1-DIN for VAG Cars with Storage Compartment

1-DIN Kit 2 Seat / Skoda / VW various vehicles CAN Bus

Radio bezel 2-DIN with compartment and radio connection kit Seat / Skoda / VW

• Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.
• Installation kits include all components to replace an OEM device.
• Depending on the equipment of the vehicle, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included.
• Please note the installation recommendations for the individual components.
• In some cases, not all vehicle functions are supported.
• For example, Trailer Assist, E Call, or other driver assistance systems.
• Check the vehicle menu for various settings before installation.
• Check the function of the settings before final installation.
• Make sure that the original factory radios and adapter plugs shown by us match the equipment of the vehicle.

Note:

• CAN Bus
• Connection: 40 Pin Quadlock VW
• Connection: Fakra(m) > DIN/ISO
• Outputs are loadable up to 1A
• VW vehicles T5 with sound system active system adapter VW T5/Touareg Quadlock MQS insert: 13-1424-26
• If necessary, slight adjustment work of the bezel is required

Suitable for the following vehicles:

• Seat

Seat Alhambra (7N) 10/2010 - 2015 Seat Leon (1P/1PN Facelift) 03/2009 - 10/2012Seat Toledo (KG) 03/2013 - 2016

• Skoda

Skoda Fabia (5J) 03/2007 - 06/2014Skoda Octavia II (1Z facelift) 01/2009 - 02/2013Skoda Rapid (NH) 10/2012 - 2015*Skoda Roomster (5J) 09/2006 - 2015Skoda Praktik (5J) 04/2007 - 04/2015 Skoda Superb (3T4) 07/2008 -2015**Skoda Superb (3T5) 01/2010 - 2015**Skoda Yeti (5L) 08/2009 - 2014***

• VW

VW Amarok (2H) 03/2010 - 2016VW Amarok (2HS2) 11/2011 - 2016VW Beetle (16/5C1/16/5C7) 11/2011 - 2016VW Beetle (16/5C7) 11/2012 - 2016VW Caddy (2K/2KN) 10/2003 - 2014VW Caravelle 09/2009 - 2015VW CC (3CC) 02/2012 - 2016VW EOS (1F) 05/2006 - 2012VW Golf V (1K) 11/2003 - 09/2008VW Golf V (1KM) 06/2007 - 10/2009VW Golf V Plus (1KP) 01/2005 - 02/2009VW Golf VI (1K) 11/2008 - 09/2012VW Golf VI (1KM) 11/2009 - 04/2013VW Golf VI Plus (1KP) 03/2009 - 01/2014VW Jetta V (1KM) 09/2005 - 10/2010VW Jetta VI (16) 01/2011 - 2015VW Multivan 09/2009 - 2015VW Passat B6 (3C2) 11/2005 - 07/2010VW Passat B6 (3C5) 08/2005 - 07/2010VW Passat B7 (3C/362) 11/2010 - 10/2014VW Passat B7 (3C/365) 11/2010 - 10/2014VW Passat B7 (3C/365) 01/2012 - 10/2014VW Passat CC (3C/3CC) 05/2008 - 01/2012VW Polo (6R) 06/2009 - 03/2014VW Scirocco III (13) 08/2008 - 2014VW Sharan II (7N) 09/2010 - 2014VW Tiguan (5N) 09/2007 - 2016VW Touran (1T) 02/2003 - 2015VW T5 Transporter 09/2009 - 2015

The following signals are provided:

• Ignition
• Lighting
• Reverse gear
• Speedpulse
• Activation OEM sound system (Seat, Skoda, VW)

References:

* OEM Skoda bezel may need to be ordered: 5JA858 415 9B9

**Vehicles with Swing OEM device OEM-Skoda bezel: 3TO8580691QB (bezel COLUMBUS Navi)

***It may be necessary to order an OEM Skoda bezel: 5L0858069L1 QB

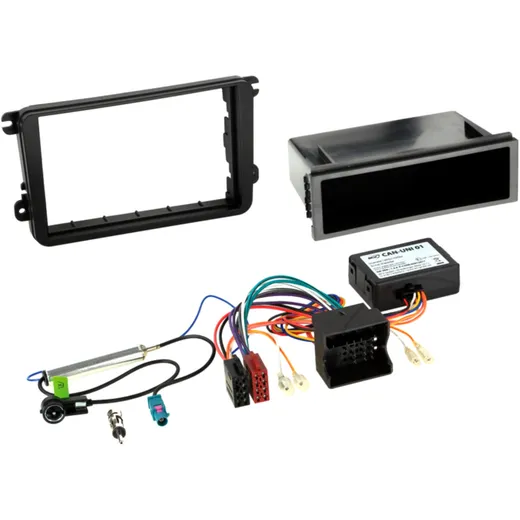

Scope of delivery:

• 2-DIN RB Seat/Skoda/VW black
• Tray for 2-DIN frame 1-DIN RB VW 113 mm Height: 194 05 55
• CAN-Bus Kit VAG 40Pin Quadlock>ISO/Antenna Fakra>ISO: 194 02 12
• Antenna adapter ISO(f) > DIN(m): 194 01 82

Manufacturer Nr.: ACV

EAN: 4026724336344
