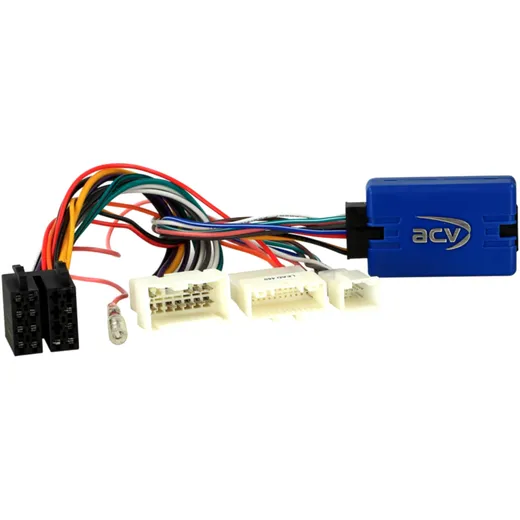

Steering Wheel Control Adapter for Dacia

Steering Wheel Control Adapter for Dacia

Steering wheel remote control adapter Dacia various vehicles 12 pin/24 pin/6 pin Dacia

• Retain the original steering wheel remote control functions when replacing the factory radio with a retrofit radio.
• Depending on the vehicle equipment and the range of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions.

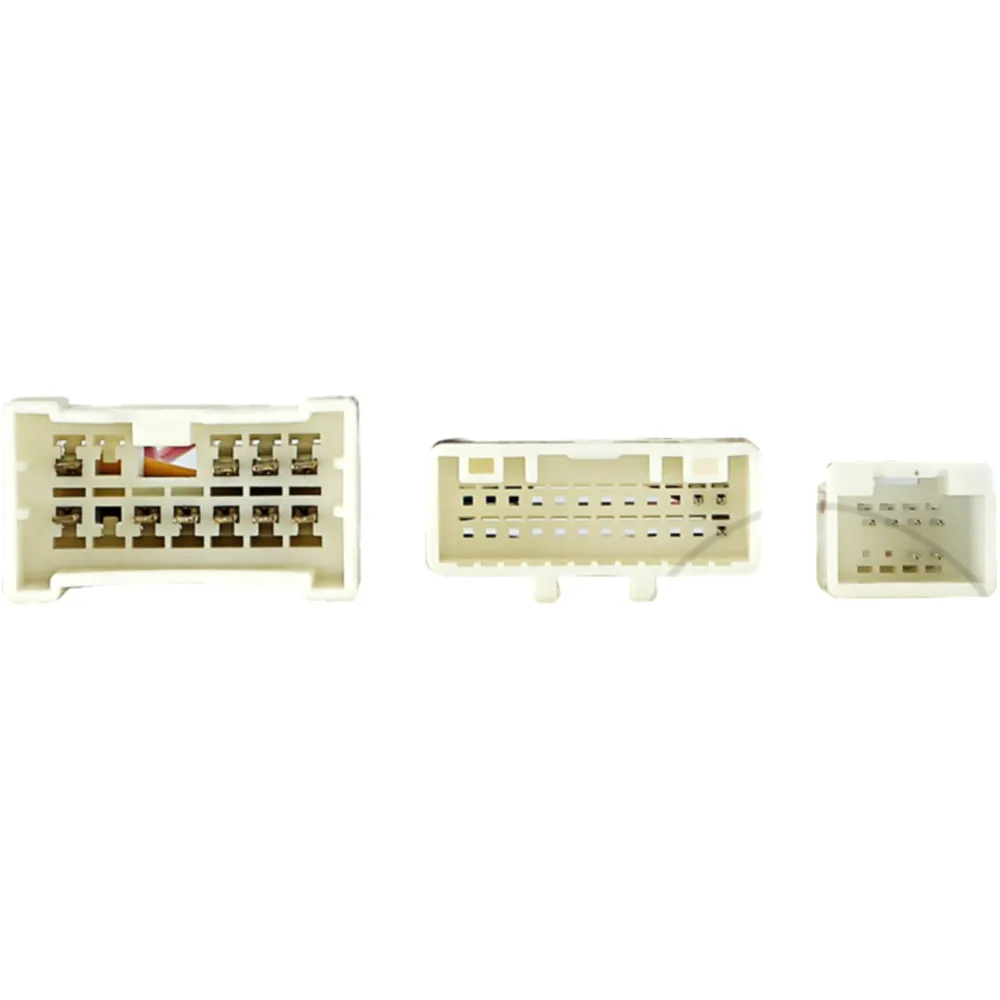

• Compare the adapter plugs shown with those in your vehicle and make sure that they match visually and technically.
• Please also check whether one of the specified original factory radios was installed in your vehicle.
• Before final installation, check the vehicle functions, vehicle settings and steering wheel remote control for proper functioning.

Note:

• analog
• Connection: 12 pin / 24 pin / 6 pin Dacia connector
• Adapt coding / routing of gray factory plug with workshop tools > if necessary
• Vehicles 2018> red +12V ignition current terminal 15 fuse box fused > if necessary
• Vehicles 2018> Interface red +12V ignition current terminal 15 fuse box fused > if necessary

Suitable for the following vehicles:

• Dacia Dokker (SD) 12/2012 - 03/2017
• Dacia Dokker (SD) 03/2017 - 11/2021*
• Dacia Dokker Stepway (SD) 11/2014 - 03/2017*
• Dacia Dokker Stepway (SD) 03/2017 - 11/2020
• Dacia Duster (SD) 11/2013 - 12/2017
• Dacia Duster (SR) 01/2018 - 07/2021*
• Dacia Duster (SR) 09/2021 - 2023**
• Dacia Lodgy (SD) 06/2012 - 06/2021*
• Dacia Lodgy Stepway (SD) 11/2014 - 06/2021*
• Dacia Logan MCV (SD) 07/2013 - 09/2020*
• Dacia Sandero (SD) 01/2013 - 09/2020*
• Dacia Sandero Stepway (SD) 01/2013 - 09/2020*

The following signals are provided:

Steering wheel remote control

*Vehicles 2017> with Visteon RO13-X07 OEM device without CAN bus > Article: 42srn011

**Vehicles with radio preparation

Connection cable for the following radio manufacturers:

• LFB cable 42s/acv > Alpine jack: 42ctalpinelead
• LFB cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
• LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
• LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
• LFB cable 42s/acv > Clarion jack: 42ctclarionlead
• LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
• LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
• LFB cable 42s/acv > Multilead various devices: 42ctmultilead
• LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
• LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
• LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
• LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
• LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> Loose jack: 42ctpioneerlead2
• LFB cable 42s/acv > Devices with LFB learn function: 42ctsmartlead
• LFB cable 42s/acv > Blaupunkt/Kenwood/Sony jack: 42ctsonylead
• LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Manufacturer Nr.: ACV

EAN: 4026724423396
