All brake discs have an ABE, also for scooters.
The discs are low-wear and have a service life that is up to 30% longer than some comparable spare parts.
All variants: Allround, RAC and EC-offroad discs are made of extremely dimensionally stable and hardened steel.
The precise surface grinding (thickness deviation of 2/100mm) avoids vibrations and improves the adaptation of the pads.
Uniform temperature build-up and reduction enables a constant pressure point.
A new special alloy prevents excessive corrosion.
Laser technology enables a lightweight design with fine contours.
Each brake disc can be individually fitted with brake pads from the TRW-Lucas range.

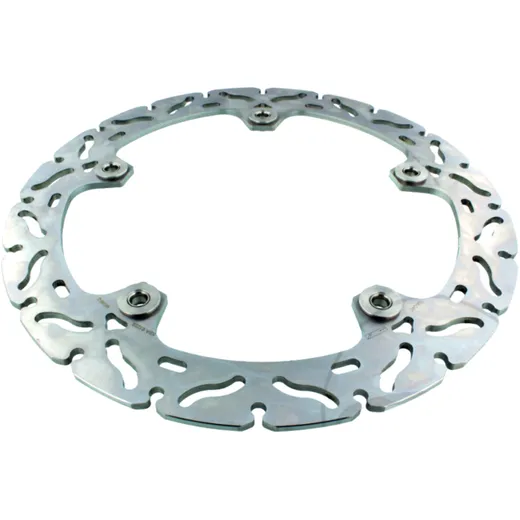

TRW-Lucas floating brake disc RAC
- Notched outer contour with slotted brake edge
- In fixed and floating versions
- Coordinated design from front to rear axle
Manufacturer Nr.: TRW MSTR242RAC
EAN: 3322938315979
| Technical Data: | |
|---|---|
| Outer Diameter | : 305 mm |
| Inner Diameter | : 181 mm |
| PCD | : 203 mm |
| Number of mounting bolts | : 5 |
| Bolt hole diameter | : 8.4 mm |
| Thickness | : 4.5 mm |
| Construction | : Fixed |
| Manufacturer | : TRW |
