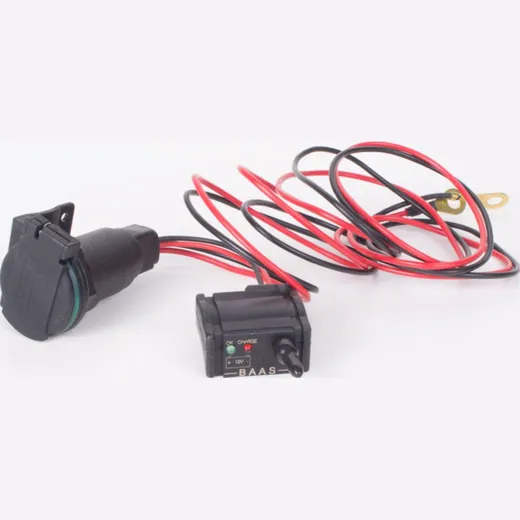

BAAS socket with battery tester (ZA04)

BAAS socket with battery tester (ZA04)

Bikes and seasonal vehicles are not driven regularly and therefore always struggling with the problem of discharged starter battery.

The well-known socket ZA02 with folding cover which is used as charger interface and power source for navigation, mobile phone, etc., is built with a battery test module. This combination is designed for permanent connection with only one common wire to the 12V vehicle battery. The tester only works by pressure switch to get actually battery charge level, also when the ignition is off. This means no permanent electricity consumed.

Following 5 charge levels be displayed by microprocessor via 2 LED.

                 - continuously green    well charged

                 - flashing green             still enough loaded

                 - red/green                     now slowly loading or drive

                 - flashing red                 urgently loading, already start problems

                 - continuously red         necessarily loading, sulfated battery

            The product (Made in Germany) is universally mounted on the handlebar or tube pole with cable ties.

Abmessungen / Dimensions
L / B / H:                                    40/35 x 40/15 x 50/35 mm
Kabel/ Cable:                              1300 mm
Kabelschuh/ Ring connector:       6 mm
