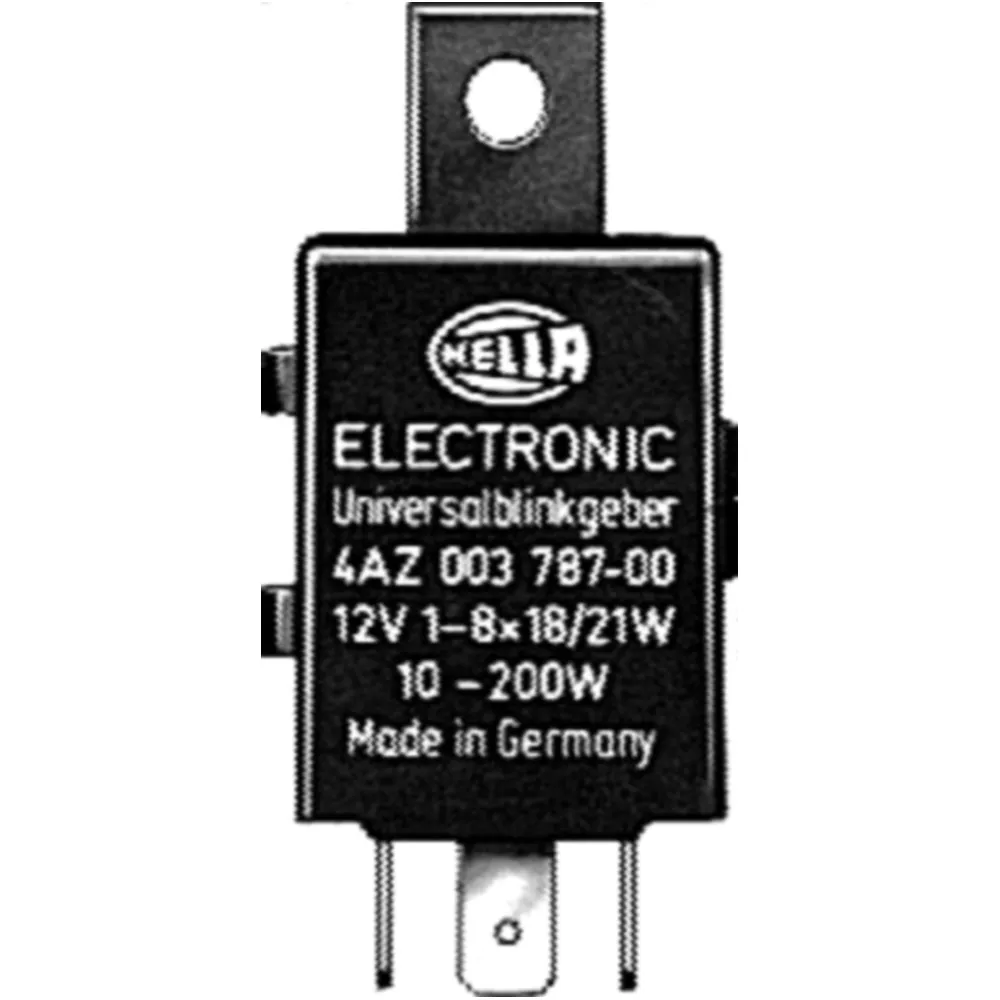

Hella 12V Electronic Flasher Unit, 4-Pole

Hella electronic flasher unit, 4-pole, 12 V

• Universal electronic flasher unit with switch-on mudguard. (direction and warning flasher unit)

• Used e.g. for simultaneous flashing of beacons

• Three-circuit flasher unit* for use in commercial vehicles (heavy class) and buses

• The function of the flasher unit is displayed, no display if one bulb fails.

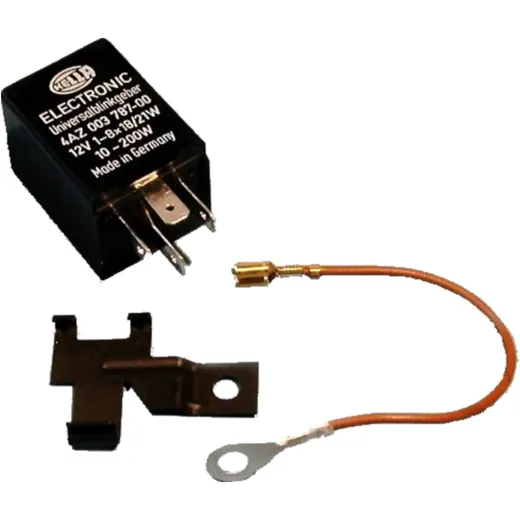

• With holder and cable

• Transistor version. Load-independent, increased short-circuit protection

• Maximum load 10 - 200 watts

Technical data

Rated voltage:12 Volt

Number of poles: 4

electrical switching capacity: 10-200 / 1-8 x 18/ 21 Watt

Operating mode: electronic

Mounting type: surface mounted

Connections: 31 = ground, + = battery, RP = indicator light, CL = switch

All indicator lights on one side of the vehicle, including the trailer or semi-trailer, are switched and controlled via three flasher unit-internal current or control circuits. One control circuit for the front turn signal lamps on the towing vehicle, the second for the rear turn signal lamps on the towing vehicle. The third control circuit is for the indicator lights on the trailer or semi-trailer. Error indications from the first and second control circuits are given via the indicator lamp for the towing vehicle. Error indications from the third control circuit are given via the indicator lamp for the trailer. The negative influence of long cables on the control characteristics is extremely effectively reduced with the three-circuit system.

Manufacturer Nr.: Hella 4AZ 003 787-081

EAN: 4082300303704
