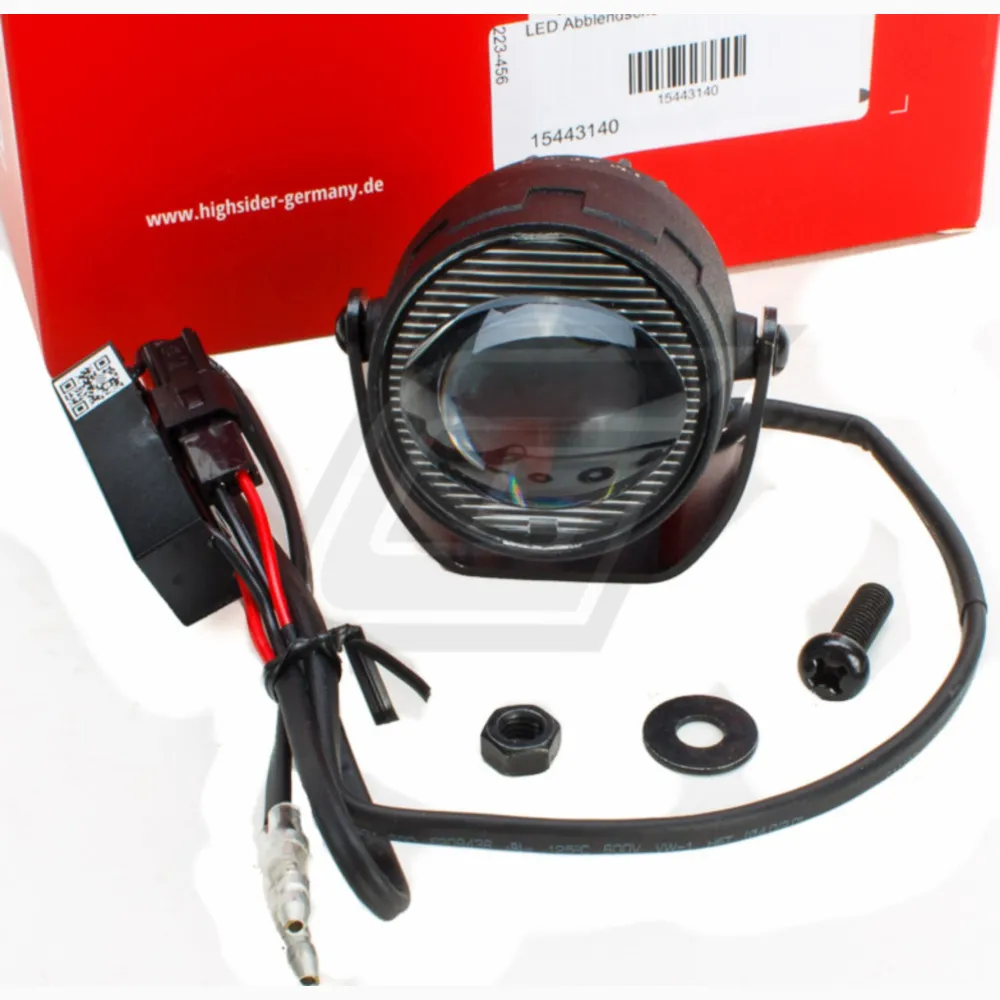

HIGHSIDER LED dipped beam headlight SATELLITE with bracket

Small, powerful dipped beam headlight with 2 power LEDs (8 watts each) in a matt black aluminium housing with round lens, enclosed in a sturdy steel bracket. The LED technology and the insert used produce a symmetrical, bright light for optimal perception of bikers by other road users, E-approved.

See and be seen give your bike an unmistakable style!
The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Headlight and bracket dimensions
Lens diameter: 44 mm
Maximum housing diameter: 50 mm
Housing length: 62 mm
Base plate Holder with slotted holes: 33 x 33 mm
Max. Width holder: 59 mm

Dimensions Box
width: 49 mm
height: 16 mm
Depth: 19mm

Current consumption at 12.5 Volt DC (suitable for 8 - 16 Volt): approx. 0.7 Ampere, 520 Lumen

ports
Black cable: Ground (-)
Red cable: Plus (+`)

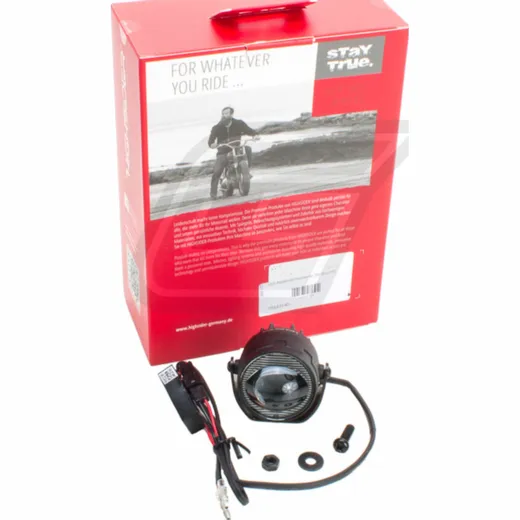

Scope of delivery: 1 piece

reference
The headlight must not be connected without the supplied black electronics box (voltage control)!
