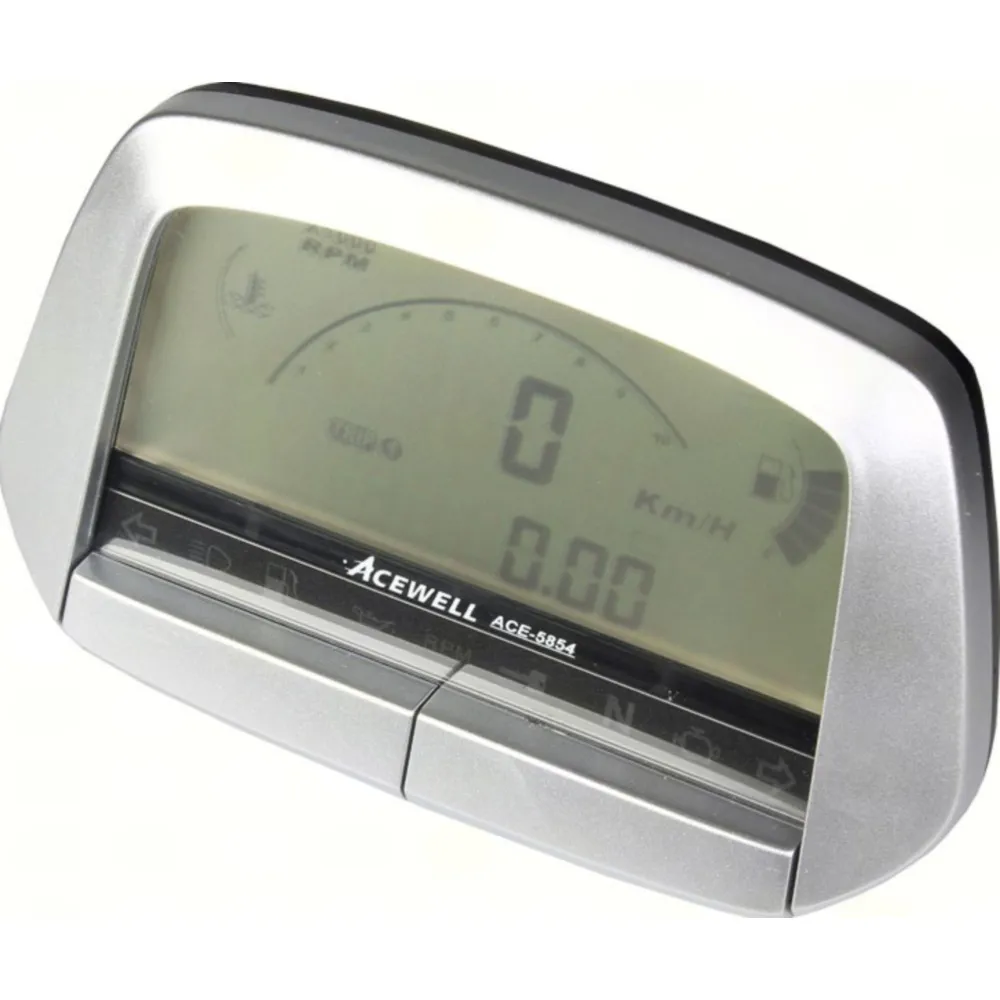

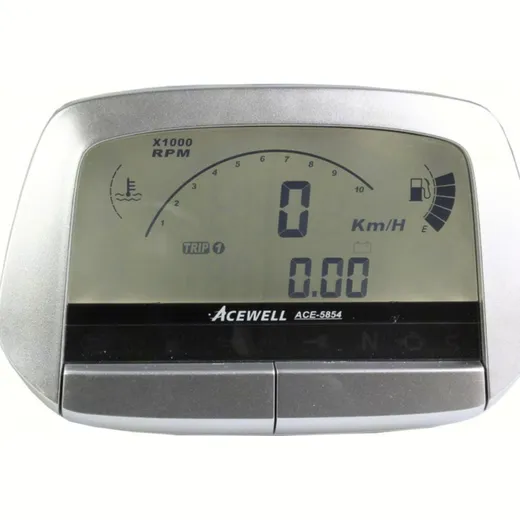

Acewell Digital Instrument ACE-5854 silver

Acewell Digital Instrument ACE-5854 silver

The Acewell ACE-5854 Motorcycle Digital Speedometer can display the following 6 functions simultaneously:

• Bar tachometer
• digital numeric speed display
• Temperature
• Bar Tank indicator
• gear indicator
• further measured value of your choice
• following measured values can be displayed:
  • speed
  • Temperature 1 +2 (air temperature)
  • voltmeter
    2 trip meter
  • Total mileage display
  • Time
  • Gear indicator
  • as well as all other measured values
• option to display the speed with or without comma Digit
• Bar graph tachometer on or convertible to 10,000 or 20,000 rpm
• 8 LED indicators included
• Start of a separate odometer display when the reserve is reached
• optional Scrolling of line 2 in 1-20 second cycle or manually via key
• optional service mode reminder function adjustable in km or operating hours.
• Integrated lap timer 99 lap times can be stored
• Settable switching and overtemperature warning with LED display
  7 bars for tank and temperature display
• Tank sensors adjustable: +/-10 - 990 Ohm resp. OFF mode
• Hour meter and total kilometers permanently stored
• Adjustable wheel circumference 1- 3.999mm (1mm resolution)
• When new, the total mileage is freely adjustable for the first 30 km
• Distance meter: 0-100m, 0-400m & quarter mile
• acceleration time: 0-100km/h, 0-60mph & 50-70mph
• deceleration meter: 100-0 km/h
• Battery monitoring adjustable from 11.0 to 14.9 Volt
• gear display is taken from rpm and speedometer and can be switched off via OFF mode
• Comfortable Remote control on handlebar. This allows all functions to be easily accessed without taking your hand off the handlebars. The manual
  Lap-Timer function can be activated as well.
• E Test marks and ABE in preparation

• Remote control with latch set
• Hall sensor for speed measurement with
• Magnet
• Temperature sensors for air and motor
• watertight mating connector set (cable set) with shrink tubing
• Instrument holder
• fastening material
• German installation instructions with circuit diagram

Color: silber
