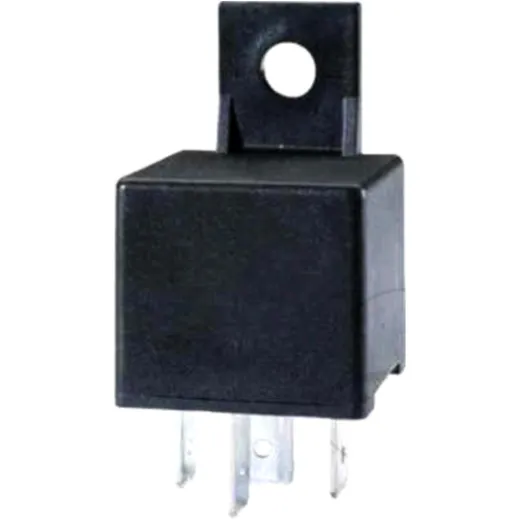

HELLA 4-Pole 12V Relay for BMW

HELLA normally open relay 4-pole, 12 V

• Mini relay with holder and blade terminals, without fuse link

• A normally open relay closes the circuit between the power source and an electrical load, ie the load is switched on

• Relays are operated via switches, pulse generators or control units

• Application: headlights, auxiliary headlights, horns, heaters, fan motors and windows, air conditioning and ignition systems, etc.

Technical specifications

Temperature range, max .: 80 ° C

Load capacity (at +80 ° C) normally open contact

Ohmic load: 30 A

Inductive load: 16 A

Capacitive load: 16 A

Manufacturer Nr.: Hella 4RA 965 400-071

EAN: 4082300688375
