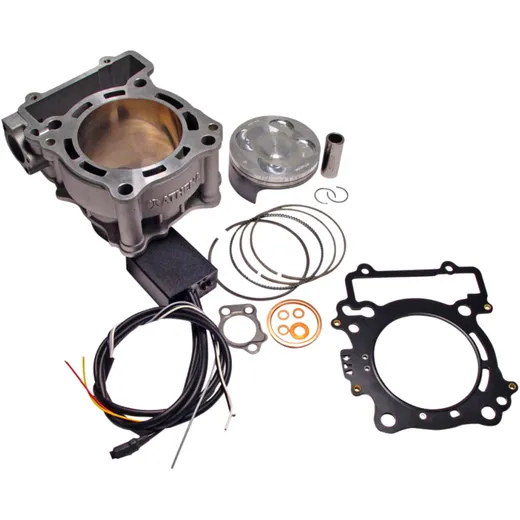

290CC Athena Big Bore Cylinder Kit for Universal Models

Athena cylinder set

For over 10 years Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by OE manufacturers but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved thanks to the collaboration with the best Italian universities and the continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can respond efficiently to different situations (production batches from OE manufacturers, small quantities, construction of a prototype for racing teams).

Athena cylinders are made from high quality aluminum alloys. They are manufactured using the latest technologies and coated with a nickel-silicon alloy. After passing the stringent quality controls, all cylinders meet the highest standards of reliability, durability and performance.

Features:

- Special 3D software is able to generate virtual simulations and mechanical loads

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerances can thus be guaranteed at all stages of production)

- Revised water channels to increase capacity

- Cylinder liners are made of a special silicone carbide and nickel mixture to ensure the best running performance of the piston as well as the best durability of the cylinder

- Tested at an internal temperature of approx. 20 degrees for the best possible control of the bores and cylinders

- Cylinder surfaces are completely flat to eliminate any fit inaccuracies

Technical specifications:

Cylinder material: aluminum

Type of cooling: water-cooled

Bore: 83 mm

Stroke: 53.6 mm

Displacement: 290 ccm

Compression ratio: 12.7:1

Piston pin diameter: 17 mm

Number of piston rings: 2

Cylinder head: Not included in the scope of delivery

Maximum power at the crankshaft: 31 HP / 9,200 rpm

Manufacturer Nr.: Athena P400485100036

EAN: 8055681301078
