Cylinder kit 160cc ATHENA big bore cylinder kit for: KTM Duke

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most advanced technologies for producing cylinders and their components,

which are not only used by OE manufacturers, but also by the best racing teams in the world.

The manufacture of aluminum cylinders is best achieved by working with the best Italian universities

as well as permanent further development demands of the best engine tuners constantly improved.

Due to a flexible production department, Athena can efficiently address various situations

(Production units of OE manufacturers, small quantities, construction of a prototype for racing teams).

Athena cylinders are made of high-quality aluminum alloys. They are manufactured using the latest technologies

and coated with a nickel-silicon alloy. After all cylinders have passed through the strict quality controls,

they meet the highest standards of reliability, longevity and performance.

Characteristics:

-A special 3D software is able to generate virtual simulations and mechanical loads

Aluminum cylinders are cast in steel molds and CNC-machined (mill tolerances can be guaranteed in all production phases)

- Revised water channels to increase capacity

Cylinder liners consist of a special silicone carbide and nickel mixture to ensure the best performance of the piston as well as the best durability of the cylinder

- At an indoor temperature of approx. 20 degrees, for the best possible control of the holes and the cylinders

Cylinder surfaces are perfectly planar to eliminate any inaccuracies

Technical specifications:

Material of cylinder: aluminum

Bore: 65 mm

Stroke: 47.2 mm

Displacement: 156.6 cc

Compaction: 13.4: 1

Cylinder head: Not included

Maximum power at the crankshaft: 16.8 CV / 9.400 Rpm

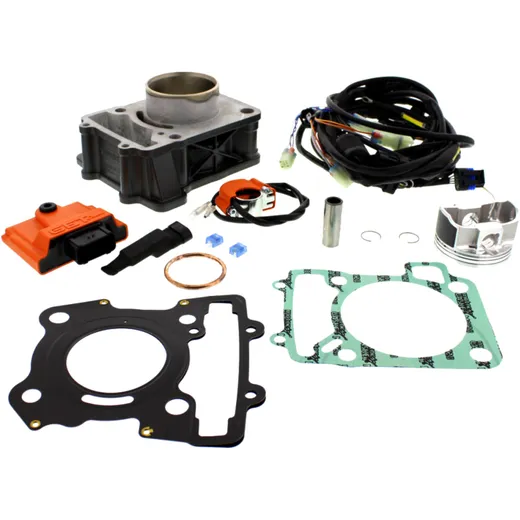

Delivery:

- Cylinders (Big Bore)

- Piston set

- Sealing kit

- ECU unit

- Wiring harness

- Map switch

- Installation Guide

The ECU unit has a pre-set injection timing that ensures perfect mixture formation and performance.

Map 1: Hard (full power, no restriction)

Map 2: Soft (for better traction)

Manufacturer Nr.: Athena P400270100009

EAN: 8052204292677
