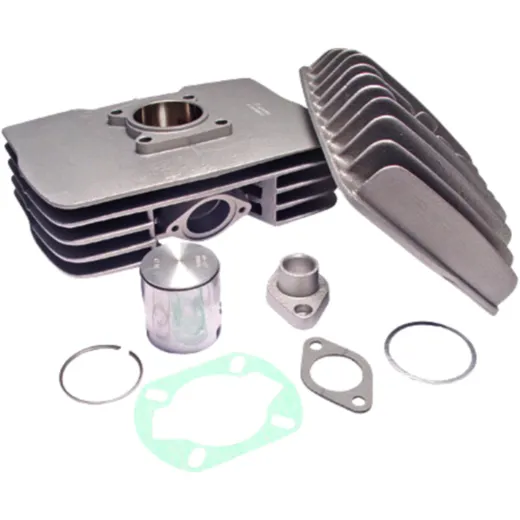

Cylinder kit 80cc ATHENA standard cylinder kit for: Hercules Supra

Athena cylinder set

For over 10 years, Athena has been investing in the best and most advanced cylinder manufacturing technologies and components used not only by OE manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as with continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (production batches of OE manufacturers, small quantities, construction of a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality controls, all cylinders meet the highest standards of reliability, longevity and performance.

Characteristics:

- A special 3D software is able to generate virtual simulations and mechanical loads

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerances can thus be guaranteed in all production phases)

- Revised water channels to increase capacity

- Cylinder liners are made of a special silicone carbide and nickel compound to ensure the best piston life and best cylinder life

- Tested at an interior temperature of about 20 degrees, for the best possible control of the holes and the cylinder

- Cylinder surfaces are perfectly flat to eliminate any fit inaccuracies

Technical specifications:

Material of the cylinder: aluminum

Type of cooling: air-cooled

Bore: 48 mm

Stroke: 44 mm

Displacement: 79.58 cc

Compaction: 11: 1

Piston pin diameter: 14 mm

Number of overflow channels: 4

Shape of the piston crown: arched

Number of piston ring: 1

Thickness of upper piston ring: 2 mm

Type of piston ring: chrome plated

Outlet: 1 x oval

Cylinder head: Included

Manufacturer Nr.: Athena 020000

EAN: 8052204292066
