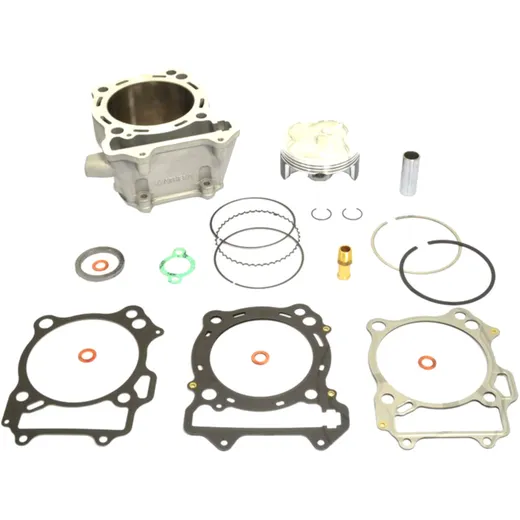

Cylinder kit kaw/suz 435cc without cylinder head for: Suzuki LT - Z, Arctic Cat/Textron DVX

Athena cylinder set

For over 10 years, Athena has been investing in the best and most modern technologies for the manufacture of cylinders and their components, which are used not only by OE manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities as well as constant further development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (production batches from OE manufacturers, small quantities, construction of a prototype for racing teams).

Athena cylinders are made from high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality controls, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Material of the cylinder: aluminum

Type of cooling: water-cooled

Bore: 94 mm

Stroke: 62.6 mm

Displacement: 434.4 cc

Compression: 12.3: 1

Number of piston rings: 3

Upper piston ring thickness: 1 mm

Thickness of the second piston ring: 1.2 mm

Oil ring thickness: 2.5 mm

Cylinder head: Not included in the scope of delivery

Maximum performance on the crankshaft: 45.3 HP / 9,000 rpm

Manufacturer Nr.: Athena P400510100002

EAN: 8055681301160
