Hella electronic immobilizer for agricultural and construction machinery.

• Theaw electronic HELLA immobilizer secures your vehicle against unauthorized use*.
• After installation of the immobilizer, it is fully integrated and undetectable to unauthorized persons.
• The replacement of a stolen vehicle leads to economic loss and long downtimes. The immobilizer can make theft more difficult.
• The HELLA immobilizer is a recognized immobilizer of the KBA *74 / 61*95 / 56*0501*00.

Compatible ignition switches:

• The immobilizer is usable with all ignition switches of the HELLA series 6JB 003 959-0.. (see also accessories) and devices of identical design that are commercially available.

Electronic key:

• The electronic key is based on contactless transponder technology. The transponder (transmitter and receiver unit) has its own battery-free power supply and is permanently integrated in the mechanical key of the starter switch.

Activation of the immobilizer:

• The immobilizer is activated as soon as the mechanical key in the start switch is moved to position "0" (automatically after 5 seconds) or remains there. The immobilizer is activated by disconnecting up to 3 control units relevant to operation, e.g. starter, ignition and fuel pump.

Deactivation of the immobilizer:

• The immobilizer is deactivated by means of a valid mechanical key and a valid electronic key (transponder). The transponder is read as soon as the mechanical key in the start switch has turned on terminal 15. This means that it is necessary to open the mechanical locking system first before the electronic key is checked.

Tamper protection:

• It is not possible to tamper with the immobilizer when the ignition is switched off. The immobilizer is deactivated by closing up to 3 operationally relevant control units, e.g. starter, ignition and fuel pump. An interruption or malfunction of the supply line or other control lines does not deactivate the immobilizer or delete data (e.g. data codes).

Technical data:

Electrical data:

• Voltage range 6 V - 32 V Rated voltage 12 V and 24 V Temperature range -40°C to +85°C.

• Current consumption, relay off typ. 50 mA / 24 V DC

• Current consumption, relay closed typ. 300 mA / 24 V DC

• Stand-by current (Kl.30 operation) ≤ 30μA / 24V DC

Relay outputs:

• Max. Switching voltage 27 V

• Voltage drop (10 A) typ. 50 mV, max. 300 mV

• Min. switching current 1A / 5V DC

• Max. Switching current 15 A

• Continuous current (23°C) 10 A

RF module:

• Transmission frequency typ.134,2 kHz

• Coding method FSK

• Range approx. 10 cm

Mechanical data:

• Storage temperature 2 h / +95°C

• Mounting position any

• Material housing PA66

Scope of delivery:

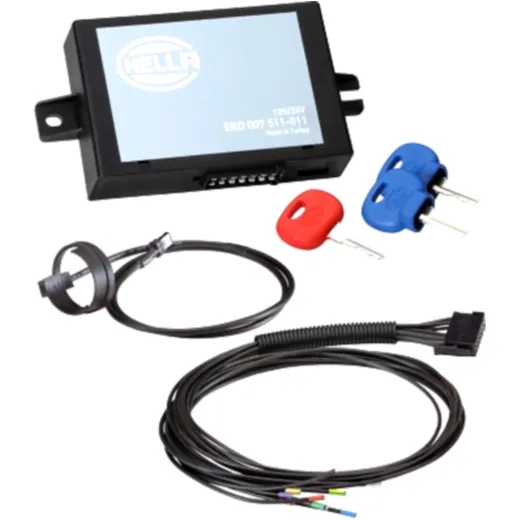

• Immobilizer control unit
• Connection cable set for the control unit
• Antenna unit incl. connection cable
• 2 blue keys (mechanical incl. transponder)**
• 1 red key (master key for teaching the blue keys)
• Assembly instructions

* Even the use of the immobilizer cannot prevent theft, but it can make it more difficult. The installation of the immobilizer must be carried out properly and professionally by qualified personnel.

** 2 keys are included in the scope of delivery, a maximum of 10 keys can be programmed per immobilizer control unit.

Manufacturer Nr.: Hella 5RD 007 511-011

EAN: 4082300405668
