5-Pole Multifunction Relay 12 V for Motorcycles

5-Pole Multifunction Relay 12 V for Motorcycles

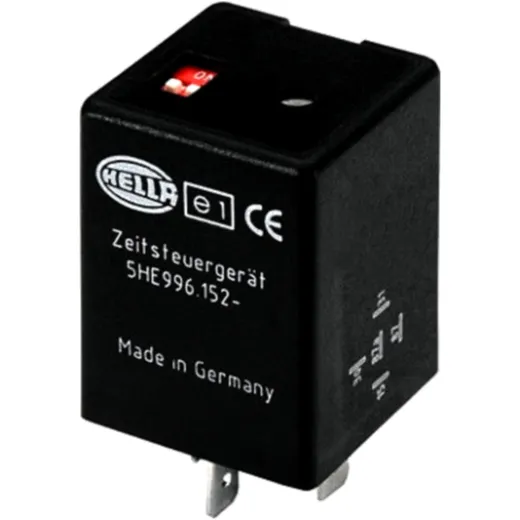

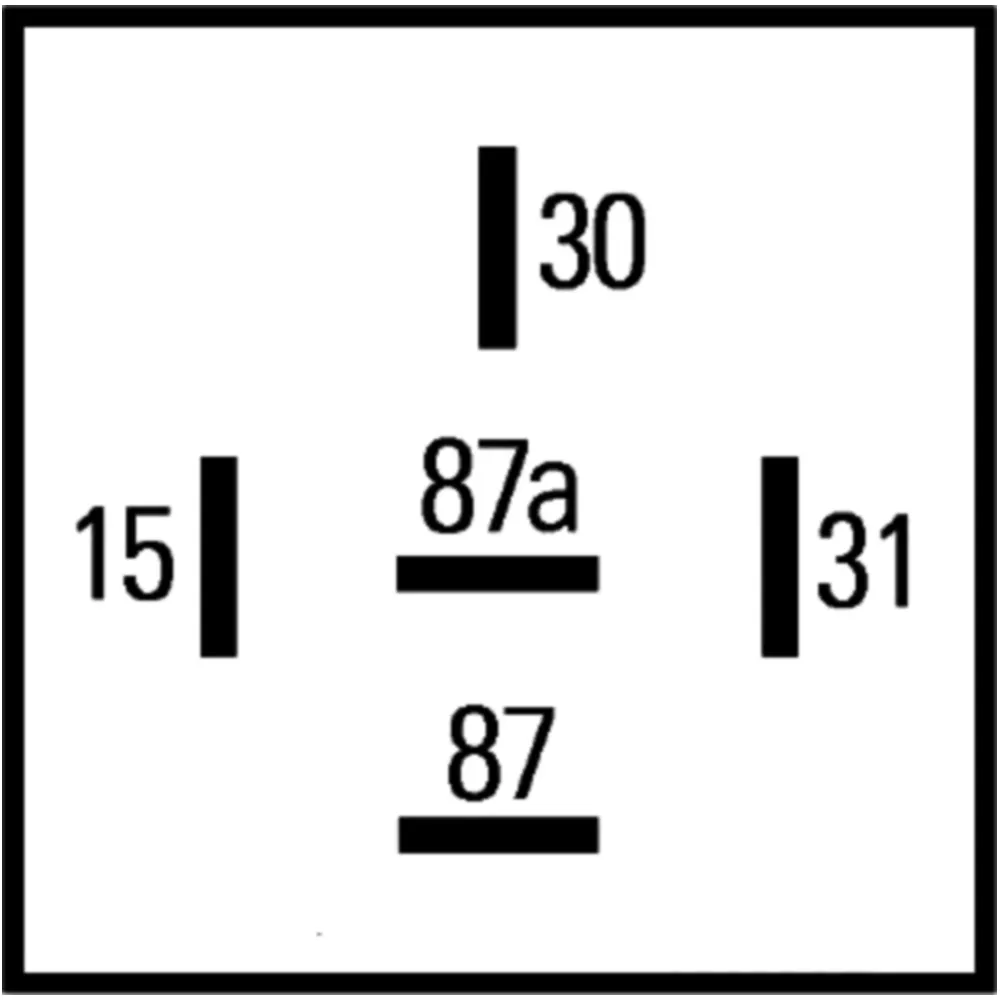

HELLA Multifunctional relay 5-pole, 12 V

• The multifunctional relay is a monostable flip-flop with a coupled relay
• Delayed delay: By applying a voltage to the input of the monovibrator, the relay is switched on immediately. After deactivation of the input, the voltage of the relay drops down after a preset time
• The delay or switch-on time can be set with a DIP switch and can be fine-tuned with the potentiometer
• The use of a more powerful relay means that higher current intensities or different load types - such as, for example, Eg inductive, capacitive / lamps

Technical specifications: Temperature range: -25 to + 80 ° C Setting range: 0 - 900 sec. Setting range: 0 - 15 min. Inspection marks e1 03 3795

Manufacturer Nr.: Hella 5HE 996 152-131

EAN: 4082300277524
