LSL Crash-Pad assembly kit for: BMW F700GS

LSL Crash-Pad assembly kit BMW F700GS

Crash-Pad assembly kit BMW F700GS

Crash Pad mounting kit (version DS L/R)

The Crash Pads are offered with solid, vehicle-specific mounting kits for the respective motorcycle. The details for mounting are described under Versionor described in the illustration of the different mounting variants.
No spare parts are available individually for the DS/SP variants. For the RA/MA variants, each side is available as a spare part.acquirable.

Fastening options:

Directly screwed:

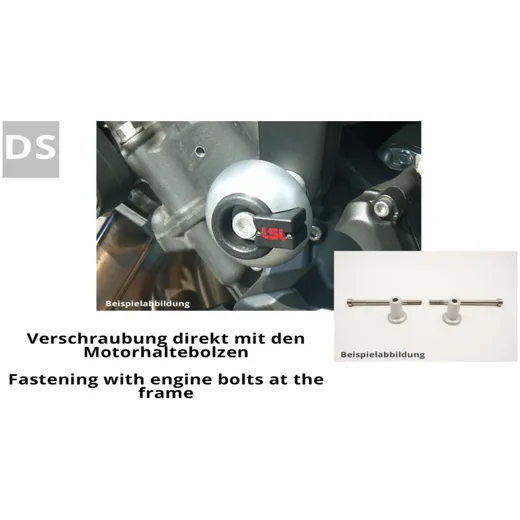

DS - directly with the motor retaining bolt
SP - Skid Pad, mounting as DS

Screwed with adapter plate:
RA - withengine mounting bolt on the frame
MA - above the engine cover

L/R - a hole must be drilled in the fairing on the left and/or right side
SW - mounting kit also available in black, please addArticle number by SW

For this product the following article is additionally required:
Crash Pad heads, which are available in different colours (supplied as a pair):

550-002GE yellow(powder-coated)
550-002BL blue- glazed
550-002CA carbon- look
550-002CG grey
550-002CR chrome-plated
550-002GO gold (anodized)
550-002GR green (powder-coated)
550-002OR orange(powder-coated)
550-002PT plastic
550-002RR ruby red
550-002RT red-glazed
550-002SI silver (anodized)
550-002SR signal red (powder-coated)
550-002SW black (anodized)
550-002TItitanium (anodized)
550-002WT white

For many models with hollow bored axles we offer axle protectors in the same design, see bike database.
