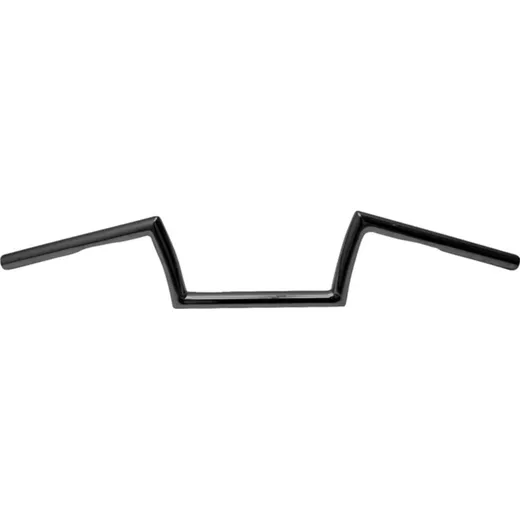

FEHLING Handlebar FEHLING - Z-Handlebar, 1 inch, with notch for electric cable (for all HD from year 82)

FEHLING Handlebar FEHLING - Z-Handlebar, 1 inch, with notch for electric cable (for all HD from year 82)

Handlebar FEHLING - Z-Handlebar, versch. Colours selectable, pipe diameter 25.4 mm (1 inch), with notch for electric cable (for all HD from Bj. 82), and 3-hole internal cable guide, technical report according to § 19/2 is available.

Z handlebar, for chopper and cruiser of the premium brand FEHLING

Note Technical Report:
Testers from TÜV, Dekra, GTÜ and KÜS, which have a training as
AAS (officially recognized expert)
AASMT (officially recognized expert with partial authority)
USB (signature authorized technical service)
are authorized to perform an attachment test with individual appraisal.

High quality handlebar, top processed and great shaped. The optimized seating position, coupled with good steering behavior, whether on highways at high speed or on winding roads provide high driving pleasure and good guidance of the machine.

Z-handlebar made of tube 25.4 mm Ø (1) with notch for electric cable (for all HD from Bj. 82), and 3Loch cable guide (Each 1 long hole 13 x 30 in the cable notch and 1 long hole 13 x 40 between the clamping points)

Color: Black

Approval: A Technical Report is available for this handlebar to support an individual approval according to § 21.
Identification: BZ3HD

Dimensions:
a Width: 780 mm
b Height: 145 mm
c Depth: 95 mm
d Height lower edge of handlebar end: 30 mm
e Clamping range: 250 mm

Tube Ø: 1 inch (24.5 mm)

Scope of delivery: 1 piece

Optional orderable:
- Drilling template for 1 inch mm handlebar and drill with 5 mm Ø, Order no. No.: 152-233

Note:
Accessory handlebars are supplied without holes for locking the switch units, as these are positioned differently depending on the motorcycle model.
Tapping the handlebars is permitted. To do this, align the new handlebar on the vehicle. Now mount the switch units for testing and note the clearance to the tank at full steering angle. We recommend using the drilling template for a good result.
