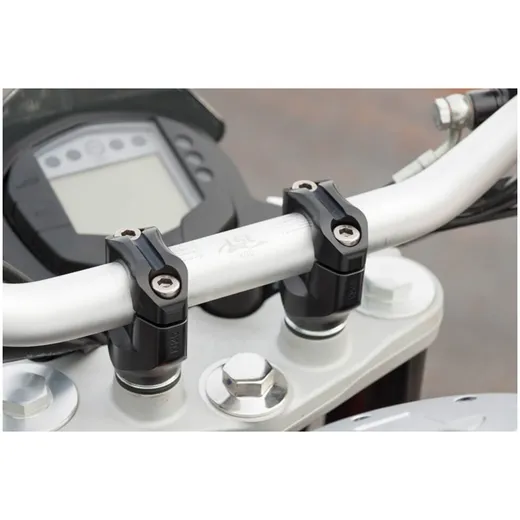

LSL Clamp block kit 28,6/75mm, black

LSL Clamp block kit 28,6/75mm, black

Clamping block kit Ø 28.6 mm in various screw connection variants.

X-bar universal clamps

For the use of X-bar handlebars (28.6 mm) LSL offers the necessary clamps for screwing in the original mounting points of the upper triple clamps. The clamps are CNC machined from high quality solid aluminum. They replace the standard clamps to achieve a different height and a better look. They can be mounted in the original mounting points with centered M10 x 1.25 mm screws can be mounted. For models with rubber bearings, this is retained.

Note:
Please check whether your vehicle is listed in the ABE with and determine the required screw length.

Attention:
This article is only registration-free if your motorcycle in the enclosed ABE is assigned to the clamp KM45/KG45 and in compliance with all conditions.
For vehicles that are not listed in the model list, an approval by acceptance according to. § 19(2) StVZO possible.

So you determine the screw length:
Measure the length of the original screws by which they look out of the original clamps. To this you add the thickness of the selected carpet pad, if necessary.
Otherwise simply select L = (the measured dimension).

fitting increase by 15 or 25 mm: 127UN0...

Attention! For motorcycles with firmly cast 22.2 mm handlebar mount please use the adapters Art.No. 127RK25...

Material: aluminum
Material treatment: CNC-milled, anodized
Fixing: central screw connection to the standard mounting points with M10x1.25mm screws
Clamp KM45: lower edge clamp to center handlebar 45 mm
Dimensions: 28.6 mm clamping, for handlebars with a Ø of 28.6 mm

Scope of delivery:
- Clamping blocks (KM45) 1 pair
- Screws M8x25 4 pieces
- Screws M10x1,25 2 pieces in the selected length
- Washers M10 2 pieces
- Nuts M10x1,25 (self-locking) 2 pieces.
